Collecting TBP profile Data

CodeXL User Guide

Help > Tutorials > CPU Profiler Tutorial > Analysis with Time-based Profiling (TBP) > Collecting TBP profile Data

Collecting TBP profile Data

To collect the TBP data, do the following.

1.      Create a new CodeXL Project.

2.      In the toolbar, select Time-based profile in the profile configuration list, as shown in the following screenshot.





3.      Set the profile session options as explained in Set the CPU Profile Session settings.

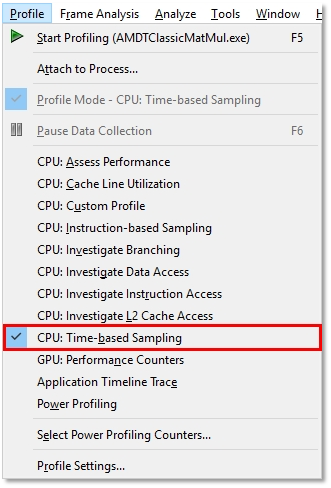

4.      Click the Start  button in the toolbar or select Profile > Start Profiling, as shown below.

CodeXL begins data collection and launches the specified application program. The start icon is disabled until profiling is in progress. The console window is open, and the launched application is running in the console window. The status bar shows the profile duration while profiling is running; this is the percentage completion of data translation during data translation phase.
