Modules view

1.      To navigate to Modules view, do one of the following.

·         In the CodeXL Explorer pane, double-click on the Modules node in the profile session tree entry created for this profile run.
The Modules view is displayed.

·         In the Overview page, right-click on the 5 Hottest Modules table entry, and select Display in Modules View.
The Modules view is displayed.

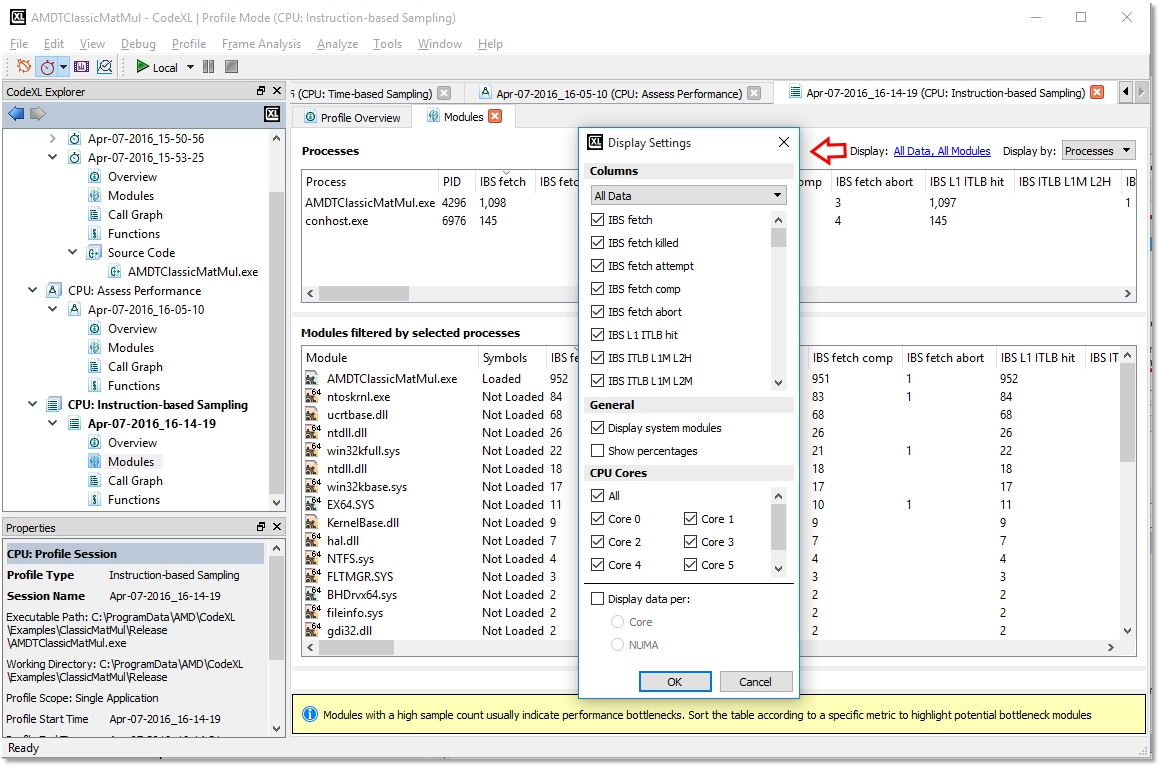

2.      Click on the Display: All Data, All Modules link to set the Display Settings.
The Display Settings dialog box is displayed to let you set the various display settings.

3.      Click the OK button to save the Display filter settings.
