CodeXL User Guide
Modules view

1.      To navigate to Modules view, do one of the following:

·         In CodeXL Explorer pane, double-click on Modules node in the profile session tree entry created for this profile run.
The Modules view is displayed.

·         In Overview page, right-click on 5 Hottest Modules table entry, and select Display in Modules View.
The Modules view is displayed.

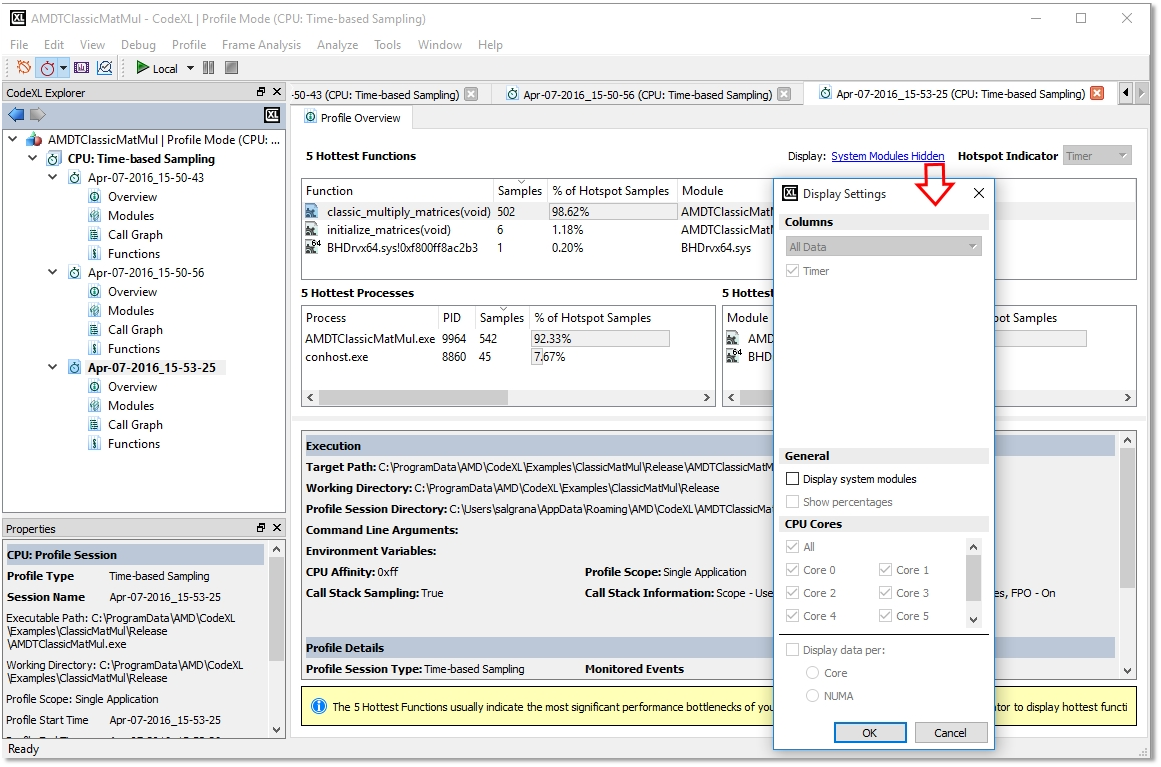

2.      Click on the Display: All Data, All Modules link to set the Display Settings.
The Display Settings dialog box is displayed to let you set the various display settings.

3.      Click OK button to save the Display filter settings.
