CodeXL User Guide

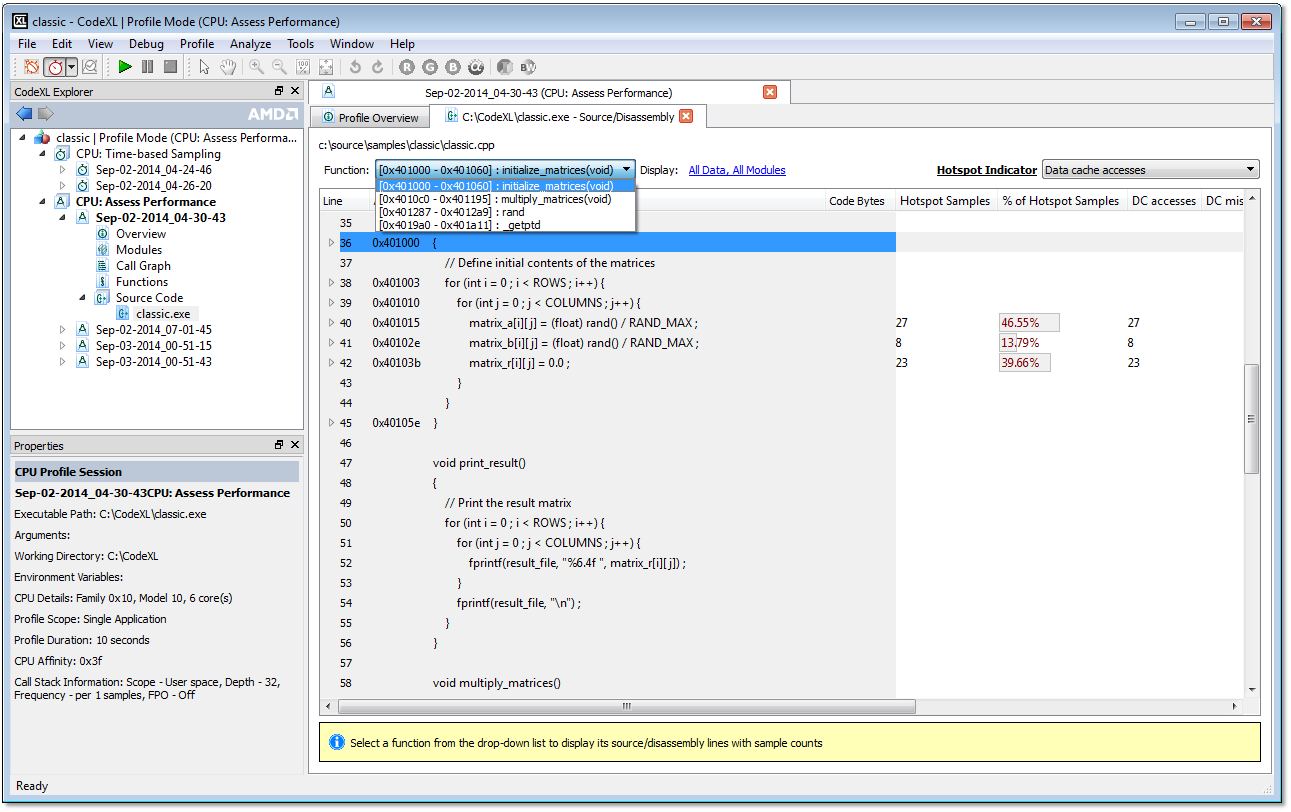

Source Code view

1.      To navigate to Call Graph view, do one of the following:

·         In the Overview page, right-click on the 5 Hottest Functions table entry, and select Open Source Code.
This displays the Source Code view for the selected function.

·         In the Functions view, select a function from the Functions table, right-click and select Open Source Code from the context menu.
This displays the Source Code view for the selected function.

·         In the Call Graph view, select a function from the Functions table, right-click and select Open Source Code from the context menu.
This displays the Source Code view for the selected function.

2.      To view the sources for the some other function, click on the Function combo-box, and select the function for which you want to view the source code.
