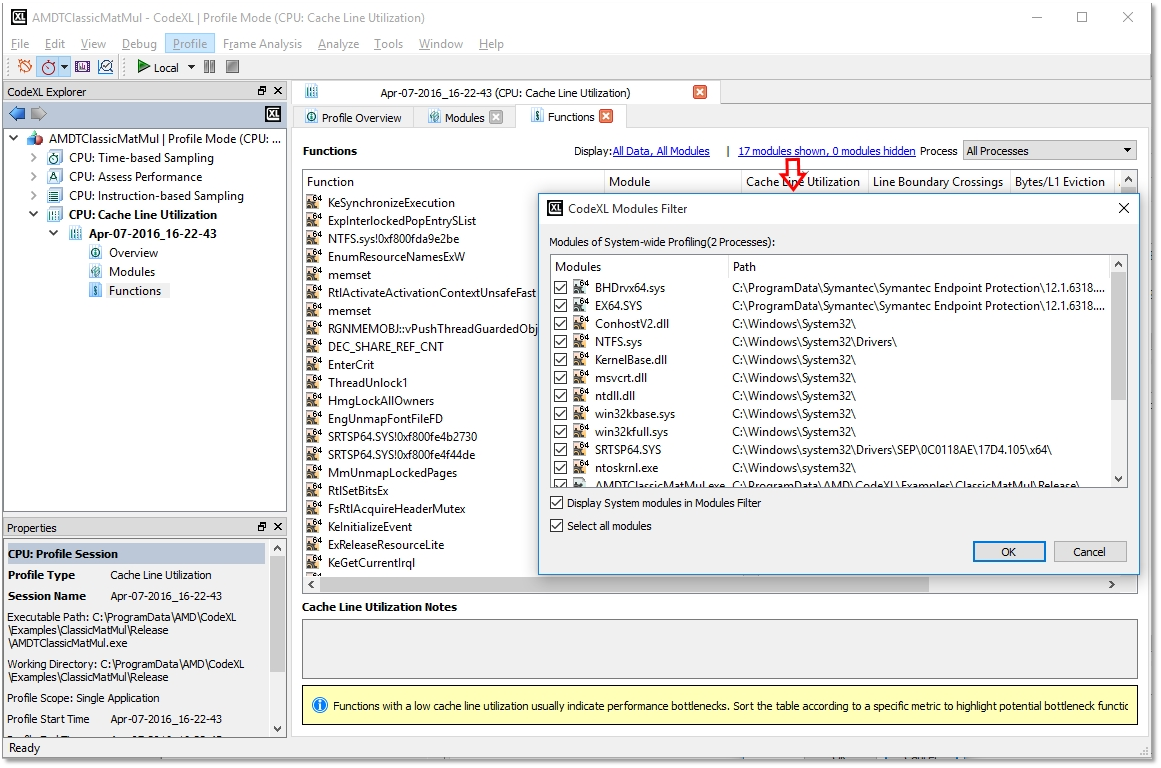

Functions view

1.      To navigate to Functions view, do any of the following:

• In CodeXL Explorer pane, double click on Functions node in the profile session tree entry created for this profile run. The Functions view is displayed with function entries from all the profiled processes and the load modules.
• In Overview page, right click on 5 Hottest Modules table entry and select Display in Functions View. The Functions view is displayed with function entries from the selected load module.
• In Overview page, right click on 5 Hottest Functions table entry and select Display in Functions View. The Functions view is displayed with function entries from all the profiled processes and the load modules.
• In Modules view, select a Process from the Processes table, and select Display in Functions View. This displays the functions from the selected process and all its load modules.
• In Modules view, select a Module from the Modules filtered by selected processes table, and select Display in Functions View. This displays the functions from the selected load module.
