Call Graph view

CodeXL

PreviousNext
CodeXL User Guide
Call Graph view

1.      To navigate to Call Graph view, do one of the following.

·         In the CodeXL Explorer pane, double-click on the Call Graph node in the profile session tree entry created for this profile run.

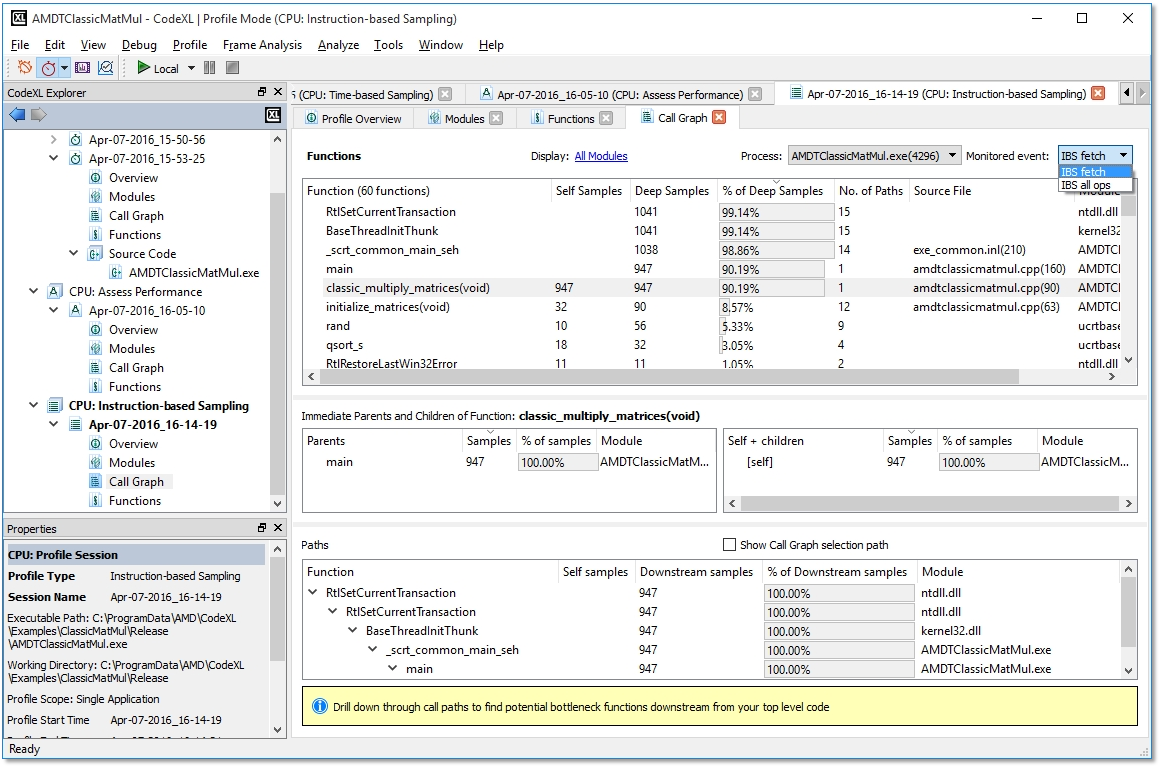

The Call Graph view is displayed with Callstack samples collected for the profiled application.

·         In the Overview page, right-click on the 5 Hottest Functions table entry, and select Display in Call Graph View.
The Functions view is displayed with Callstack samples collected for the profiled application.

·         In the Functions view, select a function from the Functions table, and select Display in Call Graph View
This displays the Call Graph constructed from the callstack samples collected from the profiled application.

2.      Click on the Display: All Modules link to enable the Display system modules.
This displays the callstack samples collected from the system modules.

3.      Click the OK button to save the Display filter settings.

4.      Click on the Process combo box to select the process for which you want to view the Call Graph.
