PSet
Parameter to the Put graphics statement which selects PSet as the blitting method
Put [ target, ] [ STEP ] ( x,y ), source [ ,( x1,y1 )-( x2,y2 ) ], PSet
PSet
The PSet method copies the source pixel values onto the destination pixels.
This is the simplest Put method. The pixels in the destination buffer are directly overwritten with the pixels in the source buffer. No additional operations are done, and there are no color values that are treated as transparent. It has the same effect as PSetting each pixel individually.
Syntax
Put [ target, ] [ STEP ] ( x,y ), source [ ,( x1,y1 )-( x2,y2 ) ], PSet
Parameters
PSet
Required.
Description
The PSet method copies the source pixel values onto the destination pixels.
This is the simplest Put method. The pixels in the destination buffer are directly overwritten with the pixels in the source buffer. No additional operations are done, and there are no color values that are treated as transparent. It has the same effect as PSetting each pixel individually.

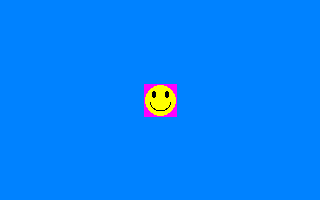

Example
'' set up a screen: 320 * 200, 16 bits per pixel
ScreenRes 320, 200, 16
Line (0, 0)-(319, 199), RGB(0, 128, 255), bf
'' set up an image with the mask color as the background.
Dim img As Any Ptr = ImageCreate( 33, 33, RGB(255, 0, 255) )
Circle img, (16, 16), 15, RGB(255, 255, 0), , , 1, f
Circle img, (10, 10), 3, RGB( 0, 0, 0), , , 2, f
Circle img, (23, 10), 3, RGB( 0, 0, 0), , , 2, f
Circle img, (16, 18), 10, RGB( 0, 0, 0), 3.14, 6.28
Dim As Integer x = 160 - 16, y = 100 - 16
'' Put the image with PSET
Put (x, y), img, PSet
'' free the image memory
ImageDestroy img
'' wait for a keypress
Sleep
ScreenRes 320, 200, 16
Line (0, 0)-(319, 199), RGB(0, 128, 255), bf
'' set up an image with the mask color as the background.
Dim img As Any Ptr = ImageCreate( 33, 33, RGB(255, 0, 255) )
Circle img, (16, 16), 15, RGB(255, 255, 0), , , 1, f
Circle img, (10, 10), 3, RGB( 0, 0, 0), , , 2, f
Circle img, (23, 10), 3, RGB( 0, 0, 0), , , 2, f
Circle img, (16, 18), 10, RGB( 0, 0, 0), 3.14, 6.28
Dim As Integer x = 160 - 16, y = 100 - 16
'' Put the image with PSET
Put (x, y), img, PSet
'' free the image memory
ImageDestroy img
'' wait for a keypress
Sleep
Differences from QB
- None
