Draw String

Draw String [buffer,] [STEP] (x, y), text [,color [, font [, method [, (alpha|blender) [, parameter] ] ] ] ]

Draw String [buffer,] [STEP] (x, y), text [, color]
Draw String [buffer,] [STEP] (x, y), text , , font [, method [, alpha ] ]
Draw String [buffer,] [STEP] (x, y), text , , font, Custom, blender [, parameter]

buffer
STEP
x, y
text
color
font
method | Custom
alpha
blender
parameter

This graphics keyword prints a string to the screen with pixel positioning, transparent background, and can use an user-supplied font. Draw String does not update any text or graphics cursor. It doesn't wrap at the end of line. Tabs, carriage returns and other special characters have no special behavior in Draw String, and are treated as normal characters.

In graphics mode, this function provides a flexible alternative to Print. It has several key advantages:
- Draw String can print text to any coordinate on the screen, while Print is constrained to the character grid accessible by Locate.
- Print will override the background behind the text with the current background color. Draw String does not do this: it leaves the pixels in the background untouched.
- Like Put, Draw String has several different methods for printing text, such as Alpha and Custom.
- Draw String isn't limited to a single character set: it is possible to supply a custom font to be used instead.

Note: If a custom font isn't supplied, Draw String will default to the standard font, as used by Print, with character size dictated by Width. method - if passed - will be ignored, and the text will be drawn using the color supplied, with a transparent background.

The custom font format:
The font is stored in a standard Get/Put buffer; the font has to be stored in a buffer using the same depth as the current color depth, otherwise Draw String will bump out with an illegal function call runtime error.

The first line of pixels in the font buffer holds the header of the font, on a byte (not pixel) basis. The very first byte identifies the font header version; currently this must be 0. The second byte gives the ascii code of the first supported character in the font; the third byte gives the ascii code of the last supported character. So if the font supports the full range 0-255, 0 and 255 will be the contents of these two bytes.
Next comes the width of each of the supported characters, each in a byte. Supposing the font holds 96 characters, ranging from 32 to 127 (inclusive), the header would have the first three bytes holding 0, 32 and 127, followed by 96 bytes giving the widths of the corresponding chars.

The font height is obtained by subtracting 1 from the buffer height, that is, while the first buffer line of pixels acts as a font header, the remaining lines define the glyphs' layout. The buffer must be as wide as necessary to hold all the supported character sprites in the same row, one after another.

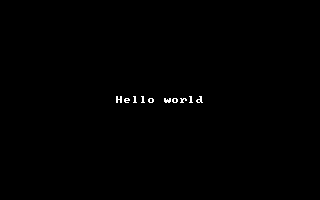

This gives an example of basic Draw String usage: it uses it to print "Hello world" in the center of the screen:

Const w = 320, h = 200 '' screen dimensions

Dim x As Integer, y As Integer, s As String

'' Open a graphics window
ScreenRes w, h

'' Draw a string in the centre of the screen:

s = "Hello world"
x = (w - Len(s) * 8) \ 2
y = (h - 1 * 8) \ 2

Draw String (x, y), s

'' Wait for a keypress before ending the program
Sleep

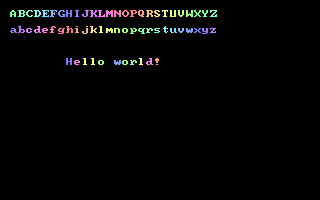

This example shows you how to create and use your own custom font. For simplicity, it uses Draw String with the default font to create the glyphs.

'' Define character range
Const FIRSTCHAR = 32, LASTCHAR = 127

Const NUMCHARS = (LASTCHAR - FIRSTCHAR) + 1
Dim As UByte Ptr p, myFont
Dim As Integer i

'' Open a 256 color graphics screen (320*200)
ScreenRes 320, 200, 8

'' Create custom font into PUT buffer

myFont = ImageCreate(NUMCHARS * 8, 9)

 '' Put font header at start of pixel data

#ifndef ImageInfo '' older versions of FB don't have the ImageInfo feature
p = myFont + IIf(myFont[0] = 7, 32, 4)
#else
ImageInfo( myFont, , , , , p )
#endif

p[0] = 0
p[1] = FIRSTCHAR
p[2] = LASTCHAR

 '' PUT each character into the font and update width information
For i = FIRSTCHAR To LASTCHAR

    '' Here we could define a custom width for each letter, but for simplicity we use
    '' a fixed width of 8 since we are reusing the default font glyphs
    p[3 + i - FIRSTCHAR] = 8

    '' Create character onto custom font buffer by drawing using default font
    Draw String myFont, ((i - FIRSTCHAR) * 8, 1), Chr(i), 32 + (i Mod 24) + 24

Next i

'' Now the font buffer is ready; we could save it using BSAVE for later use
Rem BSave "myfont.bmp", myFont

'' Here we draw a string using the custom font
Draw String (10, 10), "ABCDEFGHIJKLMNOPQRSTUVWXYZ", , myFont
Draw String (10, 26), "abcdefghijklmnopqrstuvwxyz", , myFont
Draw String (66, 58), "Hello world!", , myFont

'' Free the font from memory, now we are done with it
ImageDestroy myFont

Sleep
