Android 高仿QQ 好友分组列表

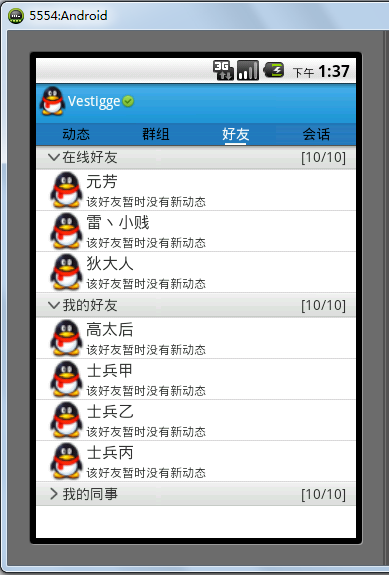

实现的效果如下：


用ExpandableListView实现，

先看Activity的代码：

[java] view plaincopy
  1. public class BuddyActivity extends Activity {
  2.     ExpandableListView expandablelistview;
  3.     //群组名称
  4.     private String[] group = new String[] { "在线好友", "我的好友", "我的同事"};
  5.     //好友名称
  6.     private String[][] buddy = new String[][] {
  7.             { "元芳", "雷丶小贱", "狄大人"},
  8.             {"高太后", "士兵甲", "士兵乙", "士兵丙" },
  9.             { "艺术家", "叫兽", "攻城师", "职业玩家" }};
  10.
  11.     public void onCreate(Bundle savedInstanceState) {
  12.         super.onCreate(savedInstanceState);
  13.         requestWindowFeature(Window.FEATURE_NO_TITLE);
  14.         setContentView(R.layout.activity_buddy);
  15.
  16.         expandablelistview= (ExpandableListView) findViewById(R.id.buddy_expandablelistview);
  17.         ExpandableListAdapter adapter=new BuddyAdapter(this,group,buddy);
  18.         expandablelistview.setAdapter(adapter);
  19.         //分组展开
  20.         expandablelistview.setOnGroupExpandListener(new OnGroupExpandListener(){
  21.             public void onGroupExpand(int groupPosition) {
  22.             }
  23.         });
  24.         //分组关闭
  25.         expandablelistview.setOnGroupCollapseListener(new OnGroupCollapseListener(){
  26.             public void onGroupCollapse(int groupPosition) {
  27.             }
  28.         });
  29.         //子项单击
  30.         expandablelistview.setOnChildClickListener(new OnChildClickListener(){
  31.             public boolean onChildClick(ExpandableListView arg0, View arg1,
  32.                     int groupPosition, int childPosition, long arg4) {
  33.                 Toast.makeText(BuddyActivity.this,
  34.                         group[groupPosition]+" : "+buddy[groupPosition][childPosition],
  35.                         Toast.LENGTH_SHORT).show();
  36.                 return false;
  37.             }
  38.         });
  39.     }
  40. }

ExpandableListView的布局有2个，分别是组的布局和子项（即好友），

先看buddy_listview_group_item.xml

[html] view plaincopy
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:id="@+id/RelativeLayout1"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="30dip"
  6.     android:background="@drawable/group_fold_bg">
  7.     <ImageView
  8.         android:id="@+id/buddy_listview_image"
  9.         android:layout_width="wrap_content"
  10.         android:layout_height="wrap_content"
  11.         android:layout_alignParentLeft="true"
  12.         android:layout_centerVertical="true"
  13.         android:layout_marginLeft="10dp"
  14.         android:src="@drawable/group_fold_arrow" />
  15.     <TextView
  16.         android:id="@+id/buddy_listview_group_name"
  17.         android:layout_width="wrap_content"
  18.         android:layout_height="wrap_content"
  19.         android:layout_centerVertical="true"
  20.         android:layout_alignTop="@+id/buddy_listview_image"
  21.         android:layout_toRightOf="@+id/buddy_listview_image"
  22.         android:text="分组名称" />
  23.     <TextView
  24.         android:id="@+id/buddy_listview_group_num"
  25.         android:layout_width="wrap_content"
  26.         android:layout_height="wrap_content"
  27.         android:layout_alignParentRight="true"
  28.         android:layout_centerVertical="true"
  29.         android:layout_marginRight="10dp"
  30.         android:text="[10/10]" />
  31. </RelativeLayout>

下面是buddy_listview_child_item.xml

[html] view plaincopy
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="40dip" >
  5.     <ImageView
  6.         android:id="@+id/buddy_listview_child_avatar"
  7.         android:layout_width="40dip"
  8.         android:layout_height="40dip"
  9.         android:layout_alignParentLeft="true"
  10.         android:layout_alignParentTop="true"
  11.         android:layout_marginLeft="10dp"
  12.         android:src="@drawable/avatar" />
  13.     <TextView
  14.         android:id="@+id/buddy_listview_child_nick"
  15.         android:layout_width="wrap_content"
  16.         android:layout_height="wrap_content"
  17.         android:layout_alignParentTop="true"
  18.         android:layout_toRightOf="@+id/buddy_listview_child_avatar"
  19.         android:text="昵称"
  20.         android:textSize="16sp" />
  21.     <TextView
  22.         android:id="@+id/buddy_listview_child_trends"
  23.         android:layout_width="wrap_content"
  24.         android:layout_height="wrap_content"
  25.         android:layout_alignLeft="@+id/buddy_listview_child_nick"
  26.         android:layout_alignParentBottom="true"
  27.         android:text="该好友暂时没有新动态"
  28.         android:textSize="12sp" />
  29.
  30. </RelativeLayout>


Adapter自然是对应的BaseExpandableListAdapter

[java] view plaincopy
  1. public class BuddyAdapter extends BaseExpandableListAdapter {
  2.     private String[] group;
  3.     private String[][] buddy;
  4.     private Context context;
  5.     LayoutInflater inflater;
  6.
  7.     public BuddyAdapter(Context context,String[] group,String[][] buddy){
  8.         this.context=context;
  9.         inflater = LayoutInflater.from(context);
  10.         this.group=group;
  11.         this.buddy=buddy;
  12.     }
  13.     public Object getChild(int groupPosition, int childPosition) {
  14.         return buddy[groupPosition][childPosition];
  15.     }
  16.
  17.     public long getChildId(int groupPosition, int childPosition) {
  18.         return childPosition;
  19.     }
  20.
  21.     public View getChildView(int groupPosition, int childPosition, boolean arg2, View convertView,
  22.             ViewGroup arg4) {
  23.         convertView = inflater.inflate(R.layout.buddy_listview_child_item, null);
  24.         TextView nickTextView=(TextView) convertView.findViewById(R.id.buddy_listview_child_nick);
  25.         nickTextView.setText(getChild(groupPosition, childPosition).toString());
  26.         return convertView;
  27.     }
  28.
  29.     public int getChildrenCount(int groupPosition) {
  30.         return buddy[groupPosition].length;
  31.     }
  32.
  33.     public Object getGroup(int groupPosition) {
  34.         return group[groupPosition];
  35.     }
  36.
  37.     public int getGroupCount() {
  38.         return group.length;
  39.     }
  40.
  41.     public long getGroupId(int groupPosition) {
  42.         return groupPosition;
  43.     }
  44.
  45.     public View getGroupView(int groupPosition, boolean isExpanded, View convertView, ViewGroup arg3) {
  46.         convertView = inflater.inflate(R.layout.buddy_listview_group_item, null);
  47.         TextView groupNameTextView=(TextView) convertView.findViewById(R.id.buddy_listview_group_name);
  48.         groupNameTextView.setText(getGroup(groupPosition).toString());
  49.         ImageView image = (ImageView) convertView.findViewById(R.id.buddy_listview_image);
  50.         image.setImageResource(R.drawable.group_unfold_arrow);
  51.         //更换展开分组图片
  52.         if(!isExpanded){
  53.             image.setImageResource(R.drawable.group_fold_arrow);
  54.         }
  55.         return convertView;
  56.     }
  57.
  58.     public boolean hasStableIds() {
  59.         return true;
  60.     }
  61.     // 子选项是否可以选择
  62.     public boolean isChildSelectable(int arg0, int arg1) {
  63.         // TODO Auto-generated method stub
  64.         return true;
  65.     }
  66. }
    来源： <http://blog.csdn.net/pomme_qixiaohu/article/details/8136418>
