[mobilesafe] 05_发送小火箭

Android 4.0


发送火箭步骤:1、为小火箭设置动画,让其尾部有喷火的效果
2、为小火箭注册触摸事件,可以让其移动
3、在MotionEvent.ACTION_UP松手的时候,判断小火箭的位置,如果在下方合适的位置,
进行发射,将下面的烟雾设置VISIBLE,并开启动画,开启一个子线程,发送消息给消息处理器,
消息处理器来更新小火箭在界面的位置,并在合适的情况,开启上面的烟雾效果。

核心代码:
package cn.zengfansheng.launchRocket;

import android.app.Activity;
import android.content.Context;
import android.graphics.drawable.AnimationDrawable;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnTouchListener;
import android.view.WindowManager;
import android.view.animation.AlphaAnimation;
import android.widget.ImageView;
import android.widget.Toast;

public class MainActivity extends Activity {

    protected static final String TAG = "MainActivity";

    private ImageView iv_rocket_image;
    private ImageView iv_smoke_bottom;
    private ImageView iv_smoke_top;

    private WindowManager wm;
    private int window_width;// 手机窗体宽度
    private int window_height;// 手机窗体高度

    private Handler handler = new Handler() {

        @Override
        public void handleMessage(Message msg) {

            int bottom_location = msg.what;
            // 1、如果bottom_location达到了iv_smoke_top的底部,那么将iv_smoke_top显示动画
            if (bottom_location < iv_smoke_top.getBottom() + 20) {
                iv_smoke_top.setVisibility(ImageView.VISIBLE);

                // 上面烟雾开启动画效果
                AlphaAnimation aa = new AlphaAnimation(0.0f, 1.0f);
                aa.setRepeatCount(1);
                aa.setRepeatMode(AlphaAnimation.REVERSE);
                aa.setFillAfter(true);
                aa.setDuration(800);
                iv_smoke_top.startAnimation(aa);
            }
            if (bottom_location < iv_smoke_top.getTop()) {
                iv_smoke_top.setVisibility(ImageView.INVISIBLE);
            }
            int l = iv_rocket_image.getLeft();// 火箭左边
            int t = iv_rocket_image.getTop();// 火箭上边
            int r = iv_rocket_image.getRight();// 火箭右边
            int b = iv_rocket_image.getBottom();// 获取下边
            iv_rocket_image.layout(l, bottom_location - (b - t), r, bottom_location);
        }

    };

    @SuppressWarnings("deprecation")
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        wm = (WindowManager) this.getSystemService(Context.WINDOW_SERVICE);
        window_width = wm.getDefaultDisplay().getWidth();
        window_height = wm.getDefaultDisplay().getHeight();

        iv_rocket_image = (ImageView) findViewById(R.id.iv_rocket_image);
        iv_smoke_bottom = (ImageView) findViewById(R.id.iv_smoke_bottom);
        iv_smoke_top = (ImageView) findViewById(R.id.iv_smoke_top);

        // 1、小火箭开启frame动画
        iv_rocket_image.setBackgroundResource(R.anim.rocket);

        AnimationDrawable rocketAnimation = (AnimationDrawable)  iv_rocket_image.getBackground();
        rocketAnimation.start();

        // 2、注册触摸事件
        iv_rocket_image.setOnTouchListener(new OnTouchListener() {

            private int startX;
            private int startY;

            @Override
            public boolean onTouch(View v, MotionEvent event) {
                switch (event.getAction()) {
                case MotionEvent.ACTION_DOWN:// 1、触摸到火箭
                    startX = (int) event.getRawX();
                    startY = (int) event.getRawY();
                    Log.i(TAG, "触摸到了:" + startX + ":" + startY);
                    break;
                case MotionEvent.ACTION_MOVE:// 2、移动火箭
                    Log.i(TAG, "移动~~");
                    int nowX = (int) event.getRawX();
                    int nowY = (int) event.getRawY();

                    int dX = nowX - startX;
                    int dY = nowY - startY;

                    int l = iv_rocket_image.getLeft() + dX;//火箭左边
                    int t = iv_rocket_image.getTop() + dY;//火箭上边
                    int r = iv_rocket_image.getRight() + dX;//火箭右边
                    int b = iv_rocket_image.getBottom() + dY;//获取下边

                    if (l < 0 || t < 0 || r > window_width || b > window_height-40) {//不让小火箭出边界
                        break;
                    }
                    iv_rocket_image.layout(l, t, r, b);

                    startX = nowX;
                    startY = nowY;
                    break;
                case MotionEvent.ACTION_UP:// 3、手松开

                    Log.i(TAG, "松手~~~");

                    l = iv_rocket_image.getLeft();//火箭左边
                    t = iv_rocket_image.getTop();//火箭上边
                    r = iv_rocket_image.getRight();//火箭右边
                    b = iv_rocket_image.getBottom();//获取下边

                    final int iv_smoke_bottom_height = iv_smoke_bottom.getHeight();// 底部云层高度
                    // 如果在窗体的宽度1/3~2/3,底部窗体,烟雾的一般范围类,可以发送火箭
                    if (l > window_width / 3 && r<window_width*2/3 &&
                         b>window_height-40-iv_smoke_bottom_height/2 && b<window_height-40) {
                        // 发射
                        Toast.makeText(getApplicationContext(), "发射火箭了~~~"
                                              Toast.LENGTH_SHORT).show();
                        iv_smoke_bottom.setVisibility(ImageView.VISIBLE);

                        // 下面的烟雾团开启动画效果
                        AlphaAnimation aa = new AlphaAnimation(0.0f, 1.0f);
                        aa.setRepeatCount(1);
                        aa.setRepeatMode(AlphaAnimation.REVERSE);
                        aa.setFillAfter(true);
                        aa.setDuration(1000);
                        iv_smoke_bottom.startAnimation(aa);

                        // 开启子线程发送消息给消息处理器,更新小火箭的位置
                        new Thread() {
                            @Override
                            public void run() {
                                int total_height = iv_smoke_bottom.getHeight()+iv_smoke_top.getHeight()+50;//总高度
                                int speed = total_height / 10;// 每次前进的距离
                                for (int i = 0; i < 10; i++) {
                                    int what = iv_rocket_image.getBottom() - speed;
                                    handler.sendEmptyMessage(what);
                                    try {
                                        Thread.sleep(70);
                                    } catch (InterruptedException e) {
                                        e.printStackTrace();
                                    }
                                }
                            }

                        }.start();
                    }
                    break;
                }
                return true;
            }
        });
    }
}

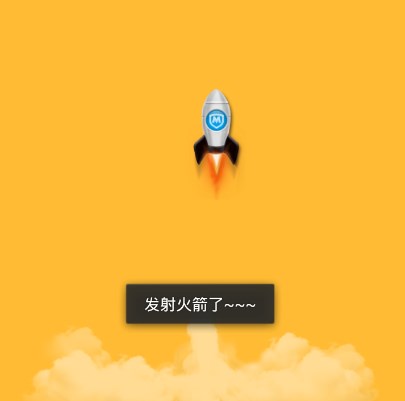

结果:
