OpenHoldem

Built-in Symbols

This section is largely based on the information originally written by Ray Bornert (http://www.winholdem.net/help/help-formula.html#symbols) and extended to include OpenHoldem-specific symbols.
These symbols take output from the scraper engine, from Table Map parameters, and from your formula functions to derive various bits of data that are useful when instructing the OpenHoldem Autoplayer how to act. The set of symbols got extended over time — not all of them are available for all versions of OpenHoldem. This list reflects the state of the latest version. Some old WinHoldem symbols got never implemented due to lack of documentation and practical relevance. Others got replaced or removed over time. Please refer to the chapter “Outdated Features and Incompatibilities between OpenHoldem and WinHoldem” for more information.
As you already might have noticed some of these symbols are of rather technical nature, A set of several hundred more poker-logical symbols is included in the OpenPPL-library that gets discussed in the seeparate OpenPPL-manual. Both languages can be mixed in nearly any way however, so please read on. Here you will find some valuable symbols that you might be miss in OpenPPL.

General

Symbol Meaning
session the current logging instance (0-24)
version returns the version number of OpenHoldem that is currently running

Casino and Poker Table

Symbol Meaning
attached_hwnd
Window handle of the poker table
Provided for DLL- and Perl-devlopers who can now directly access the poker-table if needed
nchairs the integer value for the Table Map symbol s$nchairs
network$def true if user defined string “def” appears within the Table Map symbol s$network; case-sensitive; lower-cases are expected
sitename$abc true if user defined string “abc” appears within the Table Map symbol s$sitename; case-sensitive; lower-cases are expected
title$abc true if user defined string “abc” appears within the title of the attached poker-table; case-sensitive;
islobby true if the tablemap is designed to connect to the lobby
ispopup true if the tablemap is designed to connect to known popup windows

Limits

Symbol Meaning
bblind the big blind amount
sblind the small blind amount
ante the current pre-deal ante requirement
buyin the tournament buyin in dollars
lim the current table limit 0=NL 1=PL 2=FL
isnl (lim == 0) No Limit
ispl (lim == 1) Pot Limi
isfl (lim == 2) Fixed Limit
isdon
true if you play a double-or-nothing tournament.
The conditions for istournament must apply and the title must also contain a DON identifier
ismtt
true if you play a multi-table-tournament.
The conditions for istournament must apply and the title must also contain a MTT identifier
issng
true if you play a single-table-tournament
All tournaments that can’t be recognized neither as MTT nor as DON will qualify as SNGs..
istournament true if any type of tournament table is detected. This feature works automatically, based on title-strings of the poker-table, blind-levels, sum of chips at the table, etc.
isfinaltable true if you play the final table of a MTT, depending on the tablemap region r$c0isfinaltable
islobby true if OpenHoldem is connected to a lobby window (for window placement and shutdown). Depends on the TM-symbol s$islobby
isrush true if the game is a rush / zoom style cash-game where you get moved to a new table immediately when you fold.
figure Images/debugtab_limits.png

Tournament Info

MTT symbols provide you some info about the tournament you currently play. They are most useful forswcisions at the bubble. Each one of these symbols returns the value of the corresponding tablemap-region (e.g. r$mtt_number_entrants, etc.). To make use of these symbols they must be displayed at the table, so that OpenHoldem can scrape them.
Symbol Meaning
mtt_number_entrants Number of players participating in the tournament
mtt_players_remaining Number of players still alive in the tournament
mtt_paid_places Number of paid places, useful for decisions at the bubble
mtt_my_rank My current place in the tournament depending on stacksize, assuming that all players with smaller stacks bust before me
mtt_largest_stack k Stacksize of the chip-leader, usually in dollars
mtt_average_stack Average stacksize of all tournament plazers, usually in dollars
mtt_smallest_stack Smallest stack in the tournament, usually in dollars

Hand Rank

Handrank rates your hand-value, assuming you go preflop allin against N opponents, who hold random cards (N = f$prwin_number_of_opponents). A low handrank means. your hand is good, a high handrank means, that many holdings are a favourit against you. For more info see the chapter about handrank.
Symbol Meaning
handrank169 your pocket holdem hand rank 1-169
handrank2652 your pocket holdem hand rank 12-2652
handrank1326 your pocket holdem hand rank 6-1326 (handrank2652/2)
handrank1000 your pocket holdem hand rank 4-1000 (1000*handrank2652/2652)
handrankp 2652 / (1+f$prwin_number_of_opponents)

Chairs

Please note OpenHoldem needs to see player-cards in a non-showdown-situation to recognize the userchair and then will lock the chair for stability reasons until the session of the hand. A change in userchair can happen on table-change in MTTs at some casinos and will be handled automatically.
Symbol Meaning
userchair user chair number (0-9), 0 is usually top right
headsupchair chair number of the one and only opponent headsup (0-9)
bigblindchair big blind chair number(0 - 9)
smallblindchair small blind chair number (0-9)
dealerchair dealer chair number (0-9)
cutoffchair cut off chair number (0-9)
mp3chai middle position 3 chair number (0-9)
mp2chai middle position 2 chair number (0-9)
mp1chai middle position 1 chair number (0-9)
ep3chair early position 3 chair number (0-9)
ep2chair early position 2 chair number (0-9)
ep1chair early position 1 chair number (0-9)
utgchair under the gun chair number (0-9)
firstcallerchair the chair of the first caller in front of you (0-9), current orbit only
lastcallerchair the chair of the last caller in front of you (0-9), current orbit only
firstraiserchair the chair of the first raiser in front of you (0-9), current orbit only
lastraiserchair the chair of the last raiser in front of you (0-9), current orbit only
raischair synonym for lastraiserchair
bigstackchair the chair of the playing opponent with the biggest stack (0-9)
smallstackchair the chair of the playing opponent with the smallest stack (0-9)
chair$abc player “abc” chair number (0-9); -1 if not found
chairbit$abc player “abc” chairbit (1 << chair$abc); 0 if not found

Positions

To avoid problems with fast folds in early position the dealposition-symbols will consider the following players as dealt
  • any players who are betting, especially the blinds
  • all active players between the blinds and the first user who holds cards, i.e. players who are seated and not sitting out. If one of these players does not hold cards, then OpenHoldem will assume that it is due to very fast folds in early positions.
  • the user, if he is seated and holds cards
  • any players with cardbacks, especially all players between the user and the dealer.
Symbol Meaning
betround betting round (1-4) 1=preflop, 2=flop, 3=turn, 4=river
currentround synonym for betround
previousround the previous betting round (1-3, 1 if the current round is preflop)
preflop verbose constant for the 1st betting round
flop verbose constant for the 2nd betting round
turn verbose constant for the 3rd betting round
ruver verbose constant for the 4th betting round
betposition your bet position (1=left to the dealer=usually sblind, 2=bblind, ..., nplayersdealt=dealer); contrary to dealposition betposition will change as players fold in front of you.
dealposition your deal position 1 = left to the dealer, usually small blind2 = 2 left to the dealer, usually big blind ... nplayersdealt = dealer. dealposition will not change as players fold. Dealposition does not magically auto-adapt for special cases like a missing small-blind. If you want to figure out chairs better use the more modern chair symbols.
callposition your numbered offset from the raising player (who is 0)
dealpositionrais the deal position of the raising player (1-10)
betpositionrais the bet position of the raising player (1-10)
figure Images/debug_tab_positions.png

Probabilities

There are several variations of PrWin (standard, weighted and enhanced), each with several pros and cons. For more info see the chapter about PrWin.
Symbol Meaning
prwin
the probability of winning this hand (0.000 - 1.000) .
PrWin might assume:
  • concrete ranges for your opponents with weightings for each possible holdings if you use enhanced PrWin at the DLL-level.
  • simplified, but reasonable ranges if you use weighted PrWin at the formula-level, making use of f$prwin_mustplay, f$prwin_top_clip, f$prwin_willplay and f$prwin_wontplay
  • random ranges of your opponents (default), where f$prwin_number_of_opponents specifies the number of opponents for the prwin-simulation to control the over-optimism of this very simple model.
prlos the probability of losing this hand (0.000 - 1.000) , assuming random ranges of your opponents
prtie the probability of pushing this hand (0.000 - 1.000) , assuming random ranges of your opponents
prwinnow probability that all opponents have a lower hand right now, assuming random ranges of your opponents
prlosnow probability that any opponents have a higher hand right now random, assuming random ranges of your opponents
random number between (0.000-1.000). Value is recalculated each time symbol appears in formula.
randomheartbeat random number between (0.000-1.000) for the curren heartbeat. Value is calculated only once in current heartbeat.
Introduced for OpenHoldem 2.1.9
randomround random number between (0.000-1.000) for the current round. Value is calculated only once in current round.
randomhand random number between (0.000-1.000) for the hand. Value is calculated only once per hand.

Formulas

Symbol Meaning
f$name
reference the specified standard or user defined function

Chip Amounts

Symbol Meaning
balance your balance
balanceatstartofsession your first known balance after OpenHoldem connects to a table
balance0..balance9 specific player/chair balance
stack0..stack9 sorted playersplaying balances from 0=biggest to 9=smallest
balance_rankx (x=0-9) ranked list of player balances similar to stack0..stack9, but includes players not currently in hand and includes currentbet for each player as well. rank0 has highest balance, rank9 smallest
currentbet your current amount of chips in play
currentbet0..currentbet9 specific player/chair currentbet call the amount you need to call
bet the amount of a single initial bet or raise for current round
bet1..bet4 the amount of a single initial bet or raise for round 1 - round 4
pot the total amount of chips in play including player bets
potcommon the total amount of chips in the middle
potplayer the total amount of chips in front of all players

Number of Bets

Please note that in a fixed-limit game (default) the bets double up at the turn. This will affect the symbols below. If you play no-limit or pot-limit please make sure that your tablemap detects the game-type correctly.
Symbol Meaning
nbetstocall total number of additional bets required to call.
nbetstorais total number of additional bets required to min raise.(Fixed Limit)
ncurrentbets total number of bets currently in front of you.
ncallbets total number of bets you would have on the table if you call
nraisbets total number of bets you would have on the table if you min-raise (Fixed Limit)

List Tests

Symbol Meaning
listXYZ
true if your hand is in named list XYZ
Please note that OpenHoldem 5.x+ supports arbitrary many lists with user-defined names as long as the name starts with “list”. OpenHoldem is no longer restricted to list0..list999.

Poker Values

Symbol Meaning
pokerval absolute poker value for your 5 card hand
pokervalplayer absolute poker value for your 2 card pocket hand only
pokervalcommon absolute poker value for the common cards
pcbits bit list of where your pocket cards are used in your 5 card hand.
If a certain hand can be made with either one of your cards or with one of the board cards OpenHoldem will first take your card. This can happen only for straights and for kickers for quads. This behaviour may seem counter-intuitive to some people, but got inherited from WinHoldem and kept for backward-compatibility.
  • Your hand: JTs
  • Board: 789T
  • Here you have a straight using “both” of your cards in the top two places. So pcbits will be 0b11000 = 24 here.
npcbits number (0-2) of your pocket cards used in your 5 card hand.
As npcbits symbol depends on pcbits, the same word of caution applies to this symbol, too.

Poker Value Constants

Symbol Meaning
hicard 1<< 0 (2 ** 0)
onepair 1<<24 (2 ** 24)
twopair 1<<25 (2 ** 25)
threeofakind 1<<26 (2 ** 26)
straight 1<<27 (2 ** 27)
flush 1<<28 (2 ** 28)
fullhouse 1<<29 (2 ** 29)
fourofakind 1<<30 (2 ** 30)
straightflush 1<<31 (2 ** 31)
royalflush 0x800edcba

Hand Tests

Symbol Meaning
$CCc references a hand symbol - see the Hand Symbols section below for details
$$CCc references a card symbol - see the Card Symbols section below for details
ishandup true if your hand has gone up a level (i.e. from 1 pair to 2 pair)
ishandupcommon true if common hand has gone up a level (i.e. from 1 pair to 2 pair)
ishicard true when you have hicard hand
isonepair true when you have one pair
istwopair true when you have two pair
isthreeofakind true when you have three of a kind
isstraight true when you have a straight
isflush true when you have a flush
isfullhouse true when you have a full house
isfourofakind true when you have four of a kind
isstraightflush true when you have a straight flush
isroyalflush true when you have a royal flush
nutfullhouseorfourofakind OpenPPL symbol that ranks the strength of quads and full houses, 1 = best, 999 = not at all
nutfullhouseorfourofakind_ntotal total number of currently possible quads and full houses, for comparison

Hand and Board-Expressions

hand$XYZ true, if your hand contains XYZ. The expression may contain 1 or 2 cards, optionally concrete suits or optionally the postfix “Suited”.
board$XYZ true, The expression may contain 1 up to 5 cards, optionally concrete suits or optionally the postfix “Suited”.
Hand and board expressions got implemented for OpenPPL, but of course they can be also used for OH-script. Especially board-expressions are in most cases more intuitive than rankbits(common). Some examples for hand and board-expressions (OpenPPL)
WHEN hand$AA RaiseMax FORCE
WHEN hand$AKSuited RaisePot FORCE
// We love playing hearts...
WHEN hand$Ah Call FORCE
// ...but fear the devil
WHEN board$666 Fold FORCE

Pocket Tests

Symbol Meaning
ispair true when your two dealt pocket cards are rank equal (0-1)
issuited true when your two dealt pocket cards are suit equal (0-1)
isconnector true when your two dealt pocket cards are rank adjacent (0-1)

Pocket / Common Tests

Symbol Meaning
ishipair true when you have a pair with the highest board-card or an overpaor
islopair true when you have a pair with the lowest board-card or an underpair
ismidpair true when you have a pair that is neither hipair nor lopair
ishistraight true when you have the highest straight possible
ishiflush true when you have the highest flush possible

Players, Opponents

Note that “raising players” does no longer count the so-called “blind-raisers” (former WinHoldem definition).
Symbol Meaning
maxnplayersdealt
maximum number of dealt players seen in this session.
Especially meant to distinguish certain gametypes (FR / SH / HU) in tournaments. The alternative symbol nchairs is only partially suitable as it depends only on the tablemap shich might fit to multiple gametypes.
nplayersseated number of players seated (including you) (0-10)
nplayersactive number of players active (including you) (0-10)
nplayersdealt number of players dealt (including you) (0-10)
nplayersplaying number of players playing (including you) (0-10)
nfriendsseated 1 if you are seated, 0 otherwise (0-1)
nopponentsseated number of opponents seated (not including you) (0-9)
nopponentsactive number of opponents active (not including you) (0-9)
nopponentsdealt number of opponents dealt (not including you) (0-9)
nopponentsplaying number of opponents playing (not including you) (0-9)
nopponentschecking number of opponents playing with a zero current bet equal to the previous bettor (0-9)
nopponentscalling number of opponents playing with a non-zero current bet equal to the previous bettor (0-9)
nopponentstruelyraising number of opponents playing with a current bet greater than the previous bettor (0-9). This symbol counts only people who are truely raising, e,g, more than a big-blind preflop. It does not count people posting antes or blinds like the former WinHoldem symbol “nopponentsraising”, Also counts the first better postflop.
nopponentsbetting number of opponents playing with a non zero current bet (0-9)
nopponentsfolded number of opponents that have folded this hand (0-9)
nplayerscallshort number of players that must call to stay in the hand
nchairsdealtleft number of chairs dealt after your chair, up to and including the dealer, but not the blinds.
nchairsdealtright number of chairs dealt before your chair, including the blinds
playersseatedbits bits 9-0: 1=seated 0=unseated
playersactivebits bits 9-0: 1=active 0=inactive
playersdealtbits bits 9-0: 1=dealt 0=notdealt
playersplayingbits bits 9-0: 1=playing 0=notplaying
opponentsseatedbits bits 9-0: 1=seated 0=unseated
opponentsactivebits bits 9-0: 1=active 0=inactive
opponentsdealtbits bits 9-0: 1=dealt 0=notdealt
opponentsplayingbits bits 9-0: 1=playing 0=notplaying

Flags

Symbol Meaning
fmax highest numbered flag button pressed
f0..f19 true if flag 0 - flag 19 button is pressed, false otherwise
flagbits flag button bits 19-0 - 1=pressed 0=notpressed
figure gui/images/flags_toolbar.png
The flags toolbar is used to set internal OpenHoldem flag symbols f0..f19 to on or off. These flags can be used in your formula set to quickly enanble or disable certain functionality. E.g. you could use flag 0 to to tell your bot to use a different starting-hands-chart or to do more conti-betting.
##f$preflop##
WHEN f0 RETURN f$PokerTragedySHCAction FORCE
WHEN Others RETURN f$SklanskySHCAction FORCE

Common Cards

Symbol Meaning
ncommoncardsknown number of common cards known (normal not highlighted)

(Un)known Cards

Symbol Meaning
ncardsknown total number of cards you can see (yours and commons)
ncardsunknown total number of cards you cannot see (deck and opponents)
ncardsbetter total number of single unknown cards that can beat you, e.g. if the board is four suited in hearts, and you have two spades, then ncardsbetter will be at least 9, because of the possible flush
\strikeout off\uuline off\uwave offnouts \strikeout off\uuline off\uwave offthe total number of unseen single cards that if dealt to the board might put your hand in the lead. to be counted as an out, the card must be able to bump your level and your new level must be higher than the resulting common level.
Ray E. Bornerts definition of an out is way too optimistic and nearly unusable (a hand like 72o at a board of AKQ will give you 6 outs, as every 7 and every 2 will bump your handlevel to a pair, which beats high-card ace at the board). To calculate outs in a meaningful way, there is f$mh_nouts in Winngys and HTCs hand-strength-library and there are also some good outs-counters available in the forum. However we had to keep this symbol in the code-base, as some outs-counters are based on nouts and try to discount it in a meanigful way.

nhands

Symbol Meaning
nhands total possible number of two-card hands using the unseen cards (nhandshi+nhandslo+nhandsti)
nhandshi number of hands that can beat you in a showdown right now
nhandslo number of hands that you can beat in a showdown right now
nhandsti number of hands that can tie you in a showdown right now

Flushes / Straights / Sets

Symbol Meaning
nsuited total number of same suited cards you have (1-7)
nsuitedcommon total number of same suited cards in the middle (1-5)
tsuit specific card suit for nsuited (0-3)
tsuitcommon specific card suit for nsuitedcommon (0-3)
nranked total number of same ranked cards you have (1-4)
nrankedcommon total number of same ranked cards in the middle (1-4)
trank specific card rank for nranked (2-14)
trankcommon specific card rank for nrankedcommon (2-14)
nstraight total number of connected cards you have (1-7)
nstraightcommon total number of connected common cards (1-5)
nstraightfill total number of cards needed to fill a straight (0-5)
nstraightfillcommon total number of cards needed to fill a common straight (0-5)
nstraightflush total number of suited connected cards you have (1-7)
nstraightflushcommon total number of suited connected common cards (1-5)
nstraightflushfill total number of cards needed to fill a straightflush (0-5)
nstraightflushfillcommon total number of cards needed to fill a common straightflush (0-5)

Rank Bits

Please note: aces are both hi and lo.
Symbol Meaning
rankbits bit list of card ranks (yours and commons)
rankbitscommon bit list of card ranks (commons)
rankbitsplayer bit list of card ranks (yours)
rankbitspoker bit list of card ranks (pokerval)
srankbits bit list of suited card ranks (yours and commons tsuit)
srankbitscommon bit list of suited card ranks (commons tsuitcommon)
srankbitsplayer bit list of suited card ranks (yours tsuit)
srankbitspoker bit list of suited card ranks (pokerval tsuit)
suitbitsplayerN bit list of card ranks(yours) for suit N (N = 0..3), especially meant for Omaha
suitbitscommonN bit list of card ranks(common) for suit N (N = 0..3), especially meant for Omaha

Rank Hi

Aces are hi.
Symbol Meaning
rankhi highest card rank (14-2) (yours and commons)
rankhicommon highest card rank (14-2) (commons)
rankhiplayer highest card rank (14-2) (yours)
rankhipoker highest card rank (14-2) (pokerval)
srankhi highest suited card rank (14-2) (yours and commons tsuit)
srankhicommon highest suited card rank (14-2) (commons tsuitcommon)
srankhiplayer highest suited card rank (14-2) (yours tsuit)
srankhipoker highest suited card rank (14-2) (pokerval tsuit)

Rank Lo

Aces are hi.
Symbol Meaning
ranklo lowest card rank (14-2) (yours and commons)
ranklocommon lowest card rank (14-2) (commons)
rankloplayer lowest card rank (14-2) (yours)
ranklopoker lowest card rank (14-2) (pokerval)
sranklo lowest suited card rank (14-2) (yours and commons tsuit)
sranklocommon lowest suited card rank (14-2) (commons tsuitcommon)
srankloplayer lowest suited card rank (14-2) (yours tsuit)
sranklopoker lowest suited card rank (14-2) (pokerval tsuit)

Suit Constants

Symbol Meaning
clubs verbose constant to access suit symbols (value = 2), especially meant for use with the multiplexer-engine, e.g. “suitbitscommon_clubs”
diamonds verbose constant to access suit symbols (value = 1)
hearts verbose constant to access suit symbols (value = 0)
spades verbose constant to access suit symbols (value = 3)

Time

Symbol Meaning
elapsed time in seconds since sitting down
elapsedhand time in seconds since end of previous hand
elapsedauto time in seconds since autoplayer took action
elapsedtoday time in seconds since midnight GMT

Autoplayer

Symbol Meaning
ismyturn (myturnbits & 7) (rais or call/chec or fold)
myturnbits bit-vector that tells you what buttons are visible. The bits 43210 correspond to the buttons ARKCF (allin, raise, check, call fold), the legendary FCKRA in revered order, allin has the highest value.
issittingin
True when you are not being dealt out
This symbols is true, if a sit-out-button exists that can be clicked or if a sit-in button exists that can not be clicked.
issittingout true when you are being dealt out
isautopost true when you are autoposting
isfinalanswer true when autoplayer preparing to act; false any other time.

History (I)

The action-symbols (didrais, didcall, etc.) mean: what the autoplayer did, not what the user did or what happened in the hand. That does regularly confuse new users and causes problem when simulating hands at ManualMode or with Replay Frames.
Symbol Meaning
nplayersround1..nplayersround4 number of players that began betting round 1 - round 4
nplayersround number of players that began the current betting round
prevaction record of previously attempted autoplayer action.
-2 = prefold
-1 = fold
0 = check
1 = call
2 = raise
3 = betsize
4 = allin
didfold the number of times the autoplayer has attempted to fold during the current round
didchec the number of times the autoplayer has checked during the current round
didcall the number of times the autoplayer has called during the current round
didrais the number of times the autoplayer has raised during the current round, i.e clicked the min-raise-button
didbetsize the number of times the autoplayer has betsized during the current round, i.e. used f$betsize or one of the betpot-functions
didalli the number of times the autoplayer has attempted to went allin during the current round
nbetsround1..nbetsround4 the largest number of bets in front of any player during round 1- round 4
nbetsround the largest number of bets in front of any player right now
didfoldround1..didfoldround4 true if userchair folded during round 1 - round 4
didchecround1..didchecround4 true if userchair checked during round 1 - round 4
didcallround1..didcallround4 true if userchair called during round 1 - round 4
didraisround1..didraisround4 true if userchair raised during round 1 - round 4
didbetsizeround1..didbetsizeround4 true if userchair betsized during round 1 - round 4
didalliround1..didalliround4 true if userchair went allin during round 1 - round 4

Versus

Symbol Meaning
vs$nhands Total possible number of opponent hands
vs$nhandshi Number of opponent hands that have higher river chances
vs$nhandsti Number of opponent hands that have equal river chances
vs$nhandslo Number of opponent hands that have lower river chances
vs$nhandshinow Number of opponent hands that beat heros hand currently
vs$nhandstinow Number of opponent hands that tia gainst hero currently
vs$nhandslonow Number of opponent hands that heros hand beats currently
vs$prwin Probability (0.000 - 1.000) of winning versus all possible opponent hands
vs$prtie Probability (0.000 - 1.000) of chopping versus all possible opponent hands
vs$prlos Probability (0.000 - 1.000) of losing versus all possible opponent hands
vs$prwinhi Probability (0.000 - 1.000) of winning versus higher opponent hands
vs$prtiehi Probability (0.000 - 1.000) of chopping versus higher opponent hands
vs$prloshi Probability (0.000 - 1.000) of losing versus higher opponent hands
vs$prwinti Probability (0.000 - 1.000) of winning versus equal opponent hands
vs$prtieti Probability (0.000 - 1.000) of chopping versus equal opponent hands
vs$prlosti Probability (0.000 - 1.000) of losing versus equal opponent hands
vs$prwinlo Probability (0.000 - 1.000) of winning versus lower opponent hands
vs$prtielo Probability (0.000 - 1.000) of chopping versus lower opponent hands
vs$prloslo Probability (0.000 - 1.000) of losing versus lower opponent hands
vs$ListX$prwin Probability (0.000 - 1.000) of winnning versus hand list X
vs$listX$prlos Probability (0.000 - 1.000) of losing versus hand list X
vs$listX$prtie Probability (0.000 - 1.000) of a tie versus hand list X
vs$multiplex$X$prwin Probability (0.000 - 1.000) of winnning versus the list specified by function X. The function X (e.g. f$raisersrange) must return an intereger number, e.g. 0..100 and then versus will take the corresponging list (list0..list100).
vs$multiplex$X$prlos Probability (0.000 - 1.000) of chopping versus the list specified by function X.
vs$multiplex$X$prtie Probability (0.000 - 1.000) of losing versus the list specified by function X.
vs$prwinhinow Probability (0.000 - 1.000) of winning versus currently better opponent hands
vs$prtiehinow Probability (0.000 - 1.000) of chopping versus currently better opponent hands
vs$prloshinow Probability (0.000 - 1.000) of losing versus currently better opponent hands
vs$prwintinow Probability (0.000 - 1.000) of winning versus currently equal opponent hands
vs$prtietinow Probability (0.000 - 1.000) of chopping versus currently equal opponent hands
vs$prlostinow Probability (0.000 - 1.000) of losing versus currently equal opponent hands
vs$prwinlonow; Probability (0.000 - 1.000) of winning versus currently lower opponent hands
vs$prtielonow Probability (0.000 - 1.000) of chopping versus currently lower opponent hands
vs$prloslonow Probability (0.000 - 1.000) of losing versus currently lower opponent hands

History (II)

hi_<sym>x (x=1-4) the value of the symbol <sym> as of your last turn in betting round x. Example: hi_prwin1 would return prwin as of your last turn in br1.
Valid values for <sym> are:
PROBABILITIES prwin, prlos, prtie
CHIP AMOUNTS
balance..balance9
stack0..stack9
POKER VALUES pokerval, pokervalplayer, pokervalcommon, pcbits, npcbits
HAND TESTS ishandup, ishandupcommon, ishicard, isonepair, istwopair, isthreeofakind, isstraight, isflush, isfullhouse, isfourofakind, isstraightflush, isroyalflush, isfiveofakind
POCKET/COMMON TESTS ishipair, islopair, ismidpair, ishistraight, ishiflush
(UN)KNOWN CARDS nouts, ncardsbetter
NHANDS nhands, nhandshi, nhandslo, nhandsti, prwinnow, prlosnow
FLUSHES SETS STRAIGHTS nsuited, nsuitedcommon, tsuit, tsuitcommon, nranked, nrankedcommon, trank, trankcommon, nstraight, nstraightcommon, nstraightfill, nstraightfillcommon, nstraightflush, nstraightflushcommon, nstraightflushfill, nstraightflushfillcommon
RANK BITS rankbits, rankbitscommon, rankbitsplayer, rankbitspoker, srankbits, srankbitscommon, srankbitsplayer, srankbitspoker
RANK HI rankhi, rankhicommon, rankhiplayer, rankhipoker, srankhi, srankhicommon, srankhiplayer, srankhipoker
RANK LO ranklo, ranklocommon, rankloplayer, ranklopoker, sranklo, sranklocommon, srankloplayer, sranklopoker

Table statistics

Table statistics for the last 15 minutes.
Symbol Meaning
floppct percentage of players seeing the flop for the last 15 hands
turnpct percentage of players seeing the turn for the last 15 hands
riverpct percentage of players seeing the river for the last 15 hands
avgbetspf average number of bets preflop for the last 15 hands
tablepfr pfr percentage preflop for the last 15 hands
maxbalance my highest balance during the session
handsplayed number of hands played this session by this OpenHoldem instance. The value will be 0 after connection and increase on handreset if the userchair is known.
handsplayed_headsup number of consecutive hands played headsup, meant for opponent modelling
balance_rankx (x=0-9) ranked list of player balances (includes players not currently in hand, and includes currentbet for each player as well). rank0 has highest balance.

Colourcodes

Colourcodes for player-profiling if a casino is not supported by PokerTracker. Can also be used for easy adaption against regulars and other friends.
Symbol Meaning
colourcode0..colourcode9 The scraped colourcode for playerX, depending on the tablemap region r$pXcolourcode. All colourcodes will be transformed to the closest web-safe-colour (216 values). This avoids problems with fuzzy casino-displays and 216 values are more easy to be handled by the end-user.

Betting Action

Betting action symbols depend on game-history, They get updated once per orbit at our turn and can therefore only used at our turn; otherwise they are undefined.
Symbol Meaning
lastraisedx (x=1-4) which chair was the last to raise in round x
raisbitsx (x=1-4) which chairs raised in round x
callbitsx (x=1-4) which chairs called in round x
foldbitsx (x=1-4) which chairs folded in round x
ac_agchair_after does the aggressor chair act after me?
ac_preflop_pos preflop position of the userchair (SB=1 BB=2 Early=3 Middle=4 Late=5 Dealer=6)
ac_prefloprais_pos preflop position of the raiser (SB=1 BB=2 Early=3 Middle=4 Late=5 Dealer=6)
ac_postflop_pos postflop position of the userchair (first=1 early=2 middle=3 late=4 last=5)
ac_first_into_pot returns true if you are first into the pot (first to act or checked to you)
ac_betposx (x=0-9) returns bet position of specified chair
ac_dealposx (x=0-9) returns deal position of specified chair

Logging

Symbol Meaning
log$YourTextGoesHere
When executed, adds your specified text to the autoplayer-trace and to the white box in the GUI.
The symbol will be evaluated to 1.
For example if you have the following f$rais-formula,
##f$rais##
[ betround == 2 && (nsuited == 3 || nstraight == 3) && log$ItLives ]
and you flop a backdoor flush draw, then OpenHoldem will raise and also add the text "ItLives" to the log file, just before the RAIS line. Everytime a log$ symbol is accessed it will be flagged for logging. You can use this to track which part of your formula is to blame for the action taken by OpenHoldem.

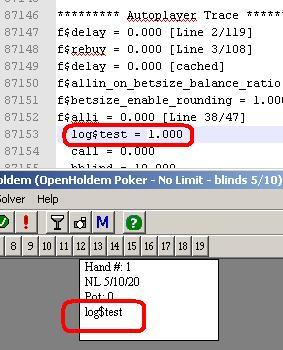

figure Images/log$_symbol.png
Note: You want to use the log$ symbol at the end of a logic block, to make sure it only gets flagged when all the previous statements are true.
As the log$-symbols modify the autoplayer-trace they require the autoplayer to be engaged.

MessageBoxes with Info

In addition to logging it might be useful to notify the user at run-time and pause script-execution, mainly in a debugging session. For this usecase OpenHoldem provides a symbol msgbox$TEXT, that — surprise — will show a messagebox with text. As the character-set in symbols is slightly limited the following replacements will take place.
  • _B will be replaced by a blank
  • _C will be replaced by a comma
  • _D will be replaced by a dot
  • _N will be replaced by a new-line
  • _U will be replaced by a underscore
The symbol msgbox$TEXT will evaluate to 0. An example:
##f$preflop##
WHEN Others RETURN (Call + msgbox$WOOHOO_NPreflop_Bworks_D) FORCE
figure Images/msgbox.png

ICM calculator

An overview of basic ICM push/fold decisions and how they work with OpenHoldem can be found here: http://www.maxinmontreal.com/wiki/index.php5?title=ICM.
UTG in a symbols name does always mean the first player after BB at a full-ring table with 10 players. If less players do actually sit at the table, the first position (UTG) will be ignored and the first player will be named UTG+1 (or UTG+2, etc.).
The ICM symbols will always assume, that you win against the player with the smallest stack or lose against the player with the biggest stack of the remaining non-folded players (or against N players with the N smallest stacks), so the ICM-symbols will be slightly too pessimistic in multiway-situations. For headsup (including blind-battle) and against concrete players (e.g. icm_alliwinUTG ) the symbols are accurate.
Symbol Description
icm my tournament equity before any action is considered (just balances)
icm_fold my tournament equity if I fold
icm_callwin my tournament equity if I call and win (conservativly: against the smallest remaining stack)
icm_calllose my tournament equity if I call and lose (conservativly: against the largest remaining stack)
icm_calltie my tournament equity if I call and tie
icm_alliwin0..icm_alliwin9 my tournament equity if I push all-in and win against 0 - 9 callers
icm_allilose0..icm_allilose9 my tournament equity if I push all-in and lose against 0 - 9 callers
icm_alliwinSB my tournament equity if I push all-in and win against the small blind
icm_alliwinBB my tournament equity if I push all-in and win against the big blind
icm_alliwinUTG my tournament equity if I push all-in and win against UTG
icm_alliwinUTG1 my tournament equity if I push all-in and win against UTG + 1
icm_alliwinUTG2 my tournament equity if I push all-in and win against UTG + 2
icm_alliwinUTG3 my tournament equity if I push all-in and win against UTG + 3
icm_alliwinUTG4 my tournament equity if I push all-in and win against UTG + 4
icm_alliwinUTG5 my tournament equity if I push all-in and win against UTG + 5
icm_alliwinUTG6 my tournament equity if I push all-in and win against UTG + 6 (cut-off)
icm_alliwinCO my tournament equity if I push all-in and win against the cut-off
icm_alliwinD my tournament equity if I push all-in and win against the dealer
icm_allitieSB my tournament equity if I push all-in and tie against the small blind
icm_allitieBB my tournament equity if I push all-in and tie against the big blind
icm_allitieUTG my tournament equity if I push all-in and tie against UTG
icm_allitieUTG1 my tournament equity if I push all-in and tie against UTG + 1
icm_allitieUTG2 my tournament equity if I push all-in and tie against UTG + 2
icm_allitieUTG3 my tournament equity if I push all-in and tie against UTG + 3
icm_allitieUTG4 my tournament equity if I push all-in and tie against UTG + 4
icm_allitieUTG5 my tournament equity if I push all-in and tie against UTG + 5
icm_allitieUTG6 my tournament equity if I push all-in and tie against UTG + 6 (cut-off)
icm_allitieCO my tournament equity if I push all-in and tie against the cut-off
icm_allitieD my tournament equity if I push all-in and win against the dealer
icm_alliloseSB my tournament equity if I push all-in and lose against the small blind
icm_alliloseBB my tournament equity if I push all-in and lose against the big blind
icm_alliloseUTG my tournament equity if I push all-in and lose against UTG
icm_alliloseUTG1 my tournament equity if I push all-in and lose against UTG + 1
icm_alliloseUTG2 my tournament equity if I push all-in and lose against UTG + 2
icm_alliloseUTG3 my tournament equity if I push all-in and lose against UTG + 3
icm_alliloseUTG4 my tournament equity if I push all-in and lose against UTG + 4
icm_alliloseUTG5 my tournament equity if I push all-in and lose against UTG + 5
icm_alliloseUTG6 my tournament equity if I push all-in and lose against UTG + 6 (cut-off)
icm_alliloseCO my tournament equity if I push all-in and lose against the cut-off
icm_alliloseD my tournament equity if I push all-in and lose against the dealer

Hand multiplexor

The purpose of the hand multiplexor is to transfer control to a specific named formula based on your actual 2 card hand. Note that the X’s and x’s are not case sensitive.
Symbol Meaning
f$$X Evaluate the UDF that corresponds to my first card
f$$XX Evaluate the UDF that corresponds to my first card and second card
f$$XXx Evaluate the UDF that corresponds to my first card, second card and suited/unsuited state
The X’s in the three symbols will be substituted with your actual hand values at time of evaluation. The first "X" will contain the the rank of your highest hole card, the second "X" will contain the rank of your lowest hole card, and the third "x" will contain either a "s" or "o" depending if your hole cards have the same suit or not. The $$ will be replaced with a single dollar sign. For example, if my hole cards are AhKh, then "f$$X" will result in "f$A" upon evaluation. Similarly, "f$$XX" would result in "f$AK" and "f$$XXx" would result in "f$AKs".
OpenHoldem will then evaluate the corresponding user defined function and return that value for the hand multiplexor symbol. If there is not a corresponding UDF defined for a given set of hole cards, then the return result is zero, not an error. The values returned by the hand specific UDFs are entirely defined by you; one simple suggestion is to have them return 1 for call and 2 for raise; if you do this then your raise formula can do this:
|| [ f$$XXx >= 2 ] //hand specific formula calc

Memory Symbols

The purpose of these symbols is to provide storage for values in order to reuse them at some later time. They once got invented as a substitute for left-hand-side-expressions (assignments of variables), that did not exist in the WinHoldem-scripting-language, but in reality, this is a bit a kludge???. A much better choice for LHS expressions is Perl or via the user-DLL extension. Please see the {Memory Symbols} section for more information.
Symbol Meaning
me_st_
Stores a value. Example: me_st_abc_123_45 - stores the value "123.45" in variable "abc".Use "_" for the decimal in values.
Allowed right hand side expressions are:
  • numbers, e.g. me_st_Pi_3_141
  • symbols, e.g. me_st_MyChair_userchair
  • functions, e.g. me_st_CallFunction_f$call
  • memory symbols, e.g. me_st_OldValue_me_re_CurrentValue
me_re_ Retrieves a previously stored value. Example: me_re_abc - retrieves the value from variable "abc".
me_inc_ Increments a memory_symbol by 1. It is used mostly for keeping a running counter of events that happen one at a time.

Hand Symbols

You can reference your dealt hand (hole cards) directly by using the $ symbols. The general form of the $ hand symbols are: $RRs. The $ character is required, followed by 1 or 2 standard card rank characters. The hand symbols are not case sensitive. A,K,Q,J,T,9-2 or by X or x which is a wild card that will match any rank. This is followed by an optional suit indicator: s - suited, o - offsuit. If the suit indicator is omitted then suit does not matter.
Examples:
Symbol Meaning
$AA true if you were dealt aces
$JT true if you were dealt jack ten
$AKs true if you were dealt ace king suited
$49o true if you were dealt four nine offsuit
$QXs true if you were dealt queen any suited
$J true if you were dealt any jack
$XXs true if you were dealt any suited hand
$XXo true if you were dealt any offsuited hand
$q2 true if you were dealt queen two

Card Symbols

The actual card value or rank/suit value for both your hand and the board can be referenced using card symbols. The general form of the $$ card symbols are: $$AB#. The card symbols are not case sensitive. $$ is required. A - is p for player, c for common B - is c for card, r for rank, s for suit # - is the card number (player 0-1 for Holdem and 0-3 for Omaha, common 0-4)
Examples
Symbol Meaning
$$pc0 the card value for player card zero (1st dealt card)
$$pr3 the rank value of player card three (4th dealt card, Omaha)
$$ps0 the suit value for player card zero (1st dealt card)
$$cc0 the card value of common card zero (1st common card dealt)
$$cr1 the rank value of common card oneo (2nd common card dealt)
$$cs4 the suit value of common card four (5th common card dealt - river)

Card Values

The rank values are 2..14 for 2..ace (high), the suit values are 0..3 (indentical to the values of the poker-eval-library) and -1 for undefined. Again the representations of cards are the same as the ones used by the internally used by the poker-eval-library, plus 253..255 for cardback / no-card / undefined.

Ranks

# CardRank
14 Ace
13 King
12 Queen
11 Jack
10..2 Ten..Two
1 Ace low (used in rankbits of wheels and wheel-draws)
-1 Undefined (no card or cardback)

Suits

Cardsuit Value
Undefined (no card or cardback) -1
Clubs 2
Diamonds 1
Hearts 0
Spades 3
