8.6. The “IO Graphs” window

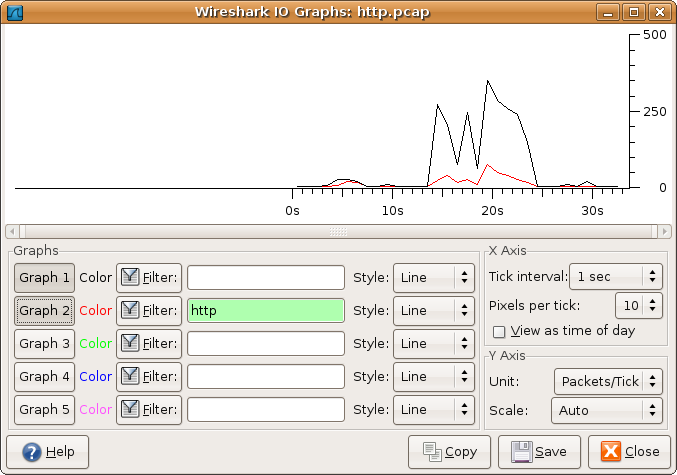

Figure 8.5. The “IO Graphs” window

• Graphs

  • Graph 1-5: enable the specific graph 1-5 (only graph 1 is enabled by default)
  • Color: the color of the graph (cannot be changed)
  • Filter: a display filter for this graph (only the packets that pass this filter will be taken into account for this graph)
  • Style: the style of the graph (Line/Impulse/FBar/Dot)

• X Axis

  • Tick interval: an interval in x direction lasts (10/1 minutes or 10/1/0.1/0.01/0.001 seconds)
  • Pixels per tick: use 10/5/2/1 pixels per tick interval
  • View as time of day: option to view x direction labels as time of day instead of seconds or minutes since beginning of capture

• Y Axis

  • Unit: the unit for the y direction (Packets/Tick, Bytes/Tick, Bits/Tick, Advanced…) [XXX - describe the Advanced feature.]
  • Scale: the scale for the y unit (Logarithmic,Auto,10,20,50,100,200,500,…)
