Editing individual images
Game Maker has a built-in image editor that can be used to edit individual subimages of sprites and background images. To call the editor for a subimage of a sprite, select the subimage in the sprite editor and choose Edit Image from the Image menu (or double click on it). To edit a background, open the background properties for and press the button Edit Background.The built-in image editor is pretty powerful and especially suited for creating sprites and backgrounds for Game Maker. However, it does not have all the features of full-blown paint and drawing packages. The buitl-in editor is primarily meant for making changes to images, not for creating sprites and backgrounds from scratch. For this you probably want to use a separate paint program, save the images as PNG files, and load them into Game Maker. You can also set an external image editor in the preferences.

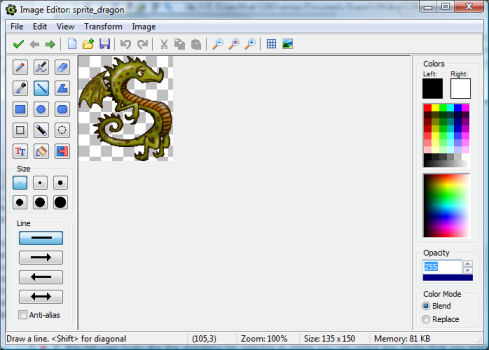

When you start the image editor it will typically looks as follows:
The form shows the image in the middle and a number of drawing tools at the left. Below there you can set certain properties of the drawing tools. These will change depending on the tool you select (see below). In the middle you see the current image. You can zoom in and out using the buttons on the toolbar. At the right there is information about the colors with which the draw. You can set a separate color for the left and the right mouse button. You can change these by clicking with the left or right mouse button in the color selector images. Also you can change them by clicking in the boxes at the top that repesent the colors. Below the colors you see the Opacity. This indicates how opaque or transparent the color is. When you set it to 255 the pixels your draw are fully opaque. When you set it to 0 they are fully transparent. Normally when you draw partially transparent pixels they are blended with the current color. By setting the Color Mode to Replace, the pixels will be replaced with the new color. Finally at the bottom of the form there is a statusbar with some infomation about the current drawing tool, the position of the mouse, the size of the image, and the amount of memory it requires.
Drawing tools
The following drawing tools are available (from left to right, top to bottom).
- Paint. With this tool you can paint on the image. You can use the left or right mouse button to paint in the different colors. You can select the size of the pen. When holding <Shift> when starting to paint you only paint horizontal or vertical lines. When holding the <Ctrl> key you can select a new paint color.
- Spray. With this tool you can spray on the image. Spray is like paint except that you use a brush that is partially transparent at the sides. You can use the left or right mouse button to paint in the different colors. You can select the size of the brush. You can also select the hardness of the brush. A soft brush will be more transparent near the sides. When holding <Shift> when starting to spray you only paint horizontal or vertical lines. When holding the <Ctrl> key you can select a new spray color.
- Erase. With this tool you can erase part the image. It looks a lot like spray but you erase what is below the mouse. How much you erase depends on the the Opacity. For a value of 255 you erase completely. For a smaller value you only make the image a bit more transparent. You can set the hardness of the eraser. When holding <Shift> when starting to spray you only paint horizontal or vertical lines.
- Color Picker. With this tool you can set the left or right mouse color to the color of a pixel in the image. Note that also the opacity value is set.
- Line. With this tool you can can draw straight lines. When holding <Shift> you can draw horizontal, vertical, or diagonal lines. You can set the width of the line and whether is should have arrows. By selecting Anti-alias the line is drawn with partially transparent pixels on the side to make it more smooth.
- Polygon. With this tool you can can draw a closed polygon. You click on the position of the first vertex. Next you can either drag the next vertex or click on the position of the next vertex. In this way you continue. You end the polygon with the <Esc> key. When holding <Shift> you can draw horizontal, vertical, or diagonal lines. You can set the width of the line and whether the polygon should be filled or not. By selecting Anti-alias the polygon is drawn with partially transparent pixels on the side to make it more smooth.
- Rectangle. With this tool you can can draw a rectangle. When holding <Shift> you can draw a square. When holding <Ctrl> you draw the rectangle from the center. You can set the width of the line and whether the rectangle should be filled or not. By selecting Anti-alias the rectangle is drawn with partially transparent pixels on the side to make it more smooth.
- Ellipse. With this tool you can can draw an ellipse. When holding <Shift> you can draw a circle. When holding <Ctrl> you draw the ellipse from the center. You can set the width of the line and whether the ellipse should be filled or not. By selecting Anti-alias the ellipse is drawn with partially transparent pixels on the side to make it more smooth.
- Rounded Rectangle. With this tool you can can draw a rounded rectangle. When holding <Shift> you can draw a square. When holding <Ctrl> you draw the rounded rectangle from the center. You can set the width of the line and whether the rounded rectangle should be filled or not. By selecting Anti-alias the rounded rectangle is drawn with partially transparent pixels on the side to make it more smooth.
- Select Region. With this tool you can can select a rectangular region. You can extend the current selection by holding the <Shift> key. Also you can remove parts by holding the <Ctrl> key. Once you made a selection you can pick it up with the mouse and drag it to a new position. When you use the right mouse button you make a copy. The selection can also be cut or copied to the clipboard. It can be deleted with the <Del> key. You can end the selection using the <Esc> key.
- Select with Magic Wand. In this case you make the selection by clicking on a pixel. All connected pixels with the same color will be selected. You can indicate the tolerance in color valu with which to select pixels and whether only the color or also the transparency value should match. You can extend the current selection by holding the <Shift> key. Also you can remove parts by holding the <Ctrl> key. You can manipulate the selection as above.
- Select by Spraying. In this case you make the selection by spraying with the mouse on the image. You can set the size of the selector. For the rest the selection can be treated as above. Different selection types can be combined.
- Text. To add a text click on the image. A pop-up window appears in which you can enter the text. Use the # symbol to insert a newline. Once you press OK the text is put in the image, with a box around it. You can now move the text by pressing with the mouse in the box and dragging the text. You can change the text by clicking with the right mouse button in the box. You can set the Font of the text and how the different lines should be alligned.
- Fill. Click on a pixel in the image and all connected pixels with the same color will be turned into the new pixel. You can set the tolerance with which the color should match. Also you can set whether to only match on the color value or also take the transparency value into account. Not that when the Color Mode is set to Blend the fill color is blended with the existing one. To replace it, set the Color Mode to Replace.
- Change Color. Click on a pixel in the image and all pixels in the image with the same color will be turned into the new pixel. You can set the tolerance with which the color should match. Also you can set whether to only match on the color value or also take the transparency value into account. Not that when the Color Mode is set to Blend the new color is blended with the existing one. To replace it, set the Color Mode to Replace.
Menus
A number of further commands is available through the menus. For some of these there is a corresponding button on the tool bar.File menu
- New. Creates a new, empty image. You must indicate the size of the image. (When the image is part of a sprite with multiple images you cannot set the size.) (Remember, all images in a sprite must have the same size.)
- Open. Open an image from a file. This menu item is not available when the image is part of a sprite with multiple images.
- Previous Image. Only available when the image is part of a sprite with multiple images. Saves the changes and opens the previous subimage.
- Next Image. Only available when the image is part of a sprite with multiple images. Saves the changes and opens the next subimage.
- Save as PNG File. Saves the image as a PNG file. No other file formats are supported.
- Close Saving Changes. Closes the form, saving the changes made to the image. If you don't want to save the changes, click on the close button of the form.
Edit menu
Here you find the usual commands to Undo the last change and Redo the last undo, to delete, cut, or copy the current selection to the clipboard, to paste the image on the clipboard as a selection in the image, and to select all. (Note that when using the clipboard, transparency information might be lost.) Two additional commands require a bit more explanation.- Erase to Left Color. This erases the image and replaces it by the left color (and opacity setting).
- Paste from File. You can select an image from a file. This image is then pasted into the current image as a selection. You can then move that selection to the appropriate place.
View menu
- Zoom Out. You can zoom out to see more of the image. You can also hold the <Ctrl> key and move the mouse scroll wheel to zoom in or out.
- No Zoom. Sets the image back to the normal size.
- Zoom In. You can zoom in to more precisely draw in an area of the image.
- Toggle Grid. You can toggle the grid on or off. Note that the grid is only shown when you zoom in enough.
- Grid Options. Here you can set the size of the grid and the color. You can indicate whether to use exclusive or when drawing the grid (might make it more visible) and whether the drawing should be snapped to the grid.
- Show Preview. Show a preview of the image in the right bottom corner in the normal size. This is in particular useful when you are zooming in a lot to make small changes. If the image is larger than the preview are you can use the mouse to drag the part of the image you want to see. You can also double click on the preview image to open a separate preview window in which you can see the complete image.
- Set Tranparency Background. Here you can indicate how the transparent area of the image should be shown in the sprite editor. You can either use the (default) block pattern, or a color that you can change by clicking on the color box.
