Introduction
This manual explains how to use Open CASCADE Technology (OCCT) Foundation Classes. It provides basic documentation on foundation classes. For advanced information on foundation classes and their applications, see our E-learning & Training offerings.
Foundation Classes provide a variety of general-purpose services such as automated dynamic memory management (manipulation of objects by handle), collections, exception handling, genericity by down-casting and plug-in creation.
Foundation Classes include the following:
Root Classes
Root classes are the basic data types and classes on which all the other classes are built. They provide:
- fundamental types such as Boolean, Character, Integer or Real,
- safe handling of dynamically created objects, ensuring automatic deletion of unreferenced objects (see Standard_Transient class),
- configurable optimized memory manager increasing the performance of applications that intensively use dynamically created objects,
- extended run-time type information (RTTI) mechanism facilitating the creation of complex programs,
- management of exceptions,
- encapsulation of C++ streams. Root classes are mainly implemented in Standard and MMgt packages.
Strings
Strings are classes that handle dynamically sized sequences of characters based on both ASCII (normal 8-bit character type) and Unicode (16-bit character type). Strings may also be manipulated by handles, and consequently be shared. Strings are implemented in the TCollection package.
Collections
Collections are the classes that handle dynamically sized aggregates of data. Collection classes are generic, that is, they define a structure and algorithms allowing to hold a variety of objects which do not necessarily inherit from a unique root class (similarly to C++ templates). When you need to use a collection of a given type of object, you must instantiate it for this specific type of element. Once this declaration is compiled, all functions available on the generic collection are available on your instantiated class.
Collections include a wide range of generic classes such as run-time sized arrays, lists, stacks, queues, sets and hash maps. Collections are implemented in the TCollection and NCollection packages.
Collections of Standard Objects
The TColStd package provides frequently used instantiations of generic classes from the TCollection package with objects from the Standard package or strings from the TCollection package.
Vectors and Matrices
These classes provide commonly used mathematical algorithms and basic calculations (addition, multiplication, transposition, inversion, etc.) involving vectors and matrices.
Primitive Geometric Types
Open CASCADE Technology primitive geometric types are a STEP-compliant implementation of basic geometric and algebraic entities. They provide:
- Descriptions of elementary geometric shapes:
- Points,
- Vectors,
- Lines,
- Circles and conics,
- Planes and elementary surfaces,
- Positioning of these shapes in space or in a plane by means of an axis or a coordinate system,
- Definition and application of geometric transformations to these shapes:
- Translations
- Rotations
- Symmetries
- Scaling transformations
- Composed transformations
- Tools (coordinates and matrices) for algebraic computation.
Common Math Algorithms
Open CASCADE Technology common math algorithms provide a C++ implementation of the most frequently used mathematical algorithms. These include:
- Algorithms to solve a set of linear algebraic equations,
- Algorithms to find the minimum of a function of one or more independent variables,
- Algorithms to find roots of one, or of a set, of non-linear equations,
- Algorithms to find the eigen-values and eigen-vectors of a square matrix.
Exceptions
A hierarchy of commonly used exception classes is provided, all based on class Failure, the root of exceptions. Exceptions describe exceptional situations, which can arise during the execution of a function. With the raising of an exception, the normal course of program execution is abandoned. The execution of actions in response to this situation is called the treatment of the exception.
Quantities
These are various classes supporting date and time information and fundamental types representing most physical quantities such as length, area, volume, mass, density, weight, temperature, pressure etc.
Application services
Foundation Classes also include implementation of several low-level services that facilitate the creation of customizable and user-friendly applications with Open CASCADE Technology. These include:
- Unit conversion tools, providing a uniform mechanism for dealing with quantities and associated physical units: check unit compatibility, perform conversions of values between different units and so on (see package UnitsAPI);
- Basic interpreter of expressions that facilitates the creation of customized scripting tools, generic definition of expressions and so on (see package ExprIntrp);
- Tools for dealing with configuration resource files (see package Resource) and customizable message files (see package Message), making it easy to provide a multi-language support in applications;
- Progress indication and user break interfaces, giving a possibility even for low-level algorithms to communicate with the user in a universal and convenient way.
Basics
This chapter deals with basic services such as library organization, persistence, data types, memory management, programming with handles, exception handling, genericity by downcasting and plug-in creation.
Library organization
This chapter introduces some basic concepts, which are used not only in Foundation Classes, but throughout the whole OCCT library.
Modules and toolkits
The whole OCCT library is organized in a set of modules. The first module, providing most basic services and used by all other modules, is called Foundation Classes and described by this manual.
Every module consists primarily of one or several toolkits (though it can also contain executables, resource units etc.). Physically a toolkit is represented by a shared library (e.g. .so or .dll). The toolkit is built from one or several packages.

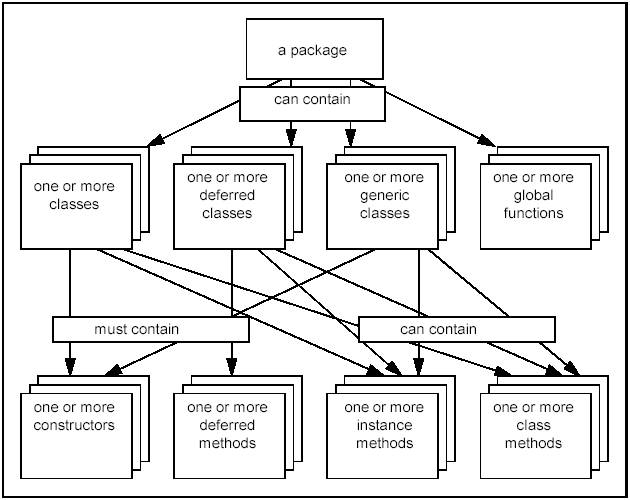

Packages
A package groups together a number of classes which have semantic links. For example, a geometry package would contain Point, Line, and Circle classes. A package can also contain enumerations, exceptions and package methods (functions). In practice, a class name is prefixed with the name of its package e.g. Geom_Circle. Data types described in a package may include one or more of the following data types:
- Enumerations
- Object classes
- Exceptions
- Pointers to other object classes Inside a package, two data types cannot bear the same name.
Methods are either functions or procedures. Functions return an object, whereas procedures only communicate by passing arguments. In both cases, when the transmitted object is an instance manipulated by a handle, its identifier is passed. There are three categories of methods:
- Object constructor Creates an instance of the described class. A class will have one or more object constructors with various different arguments or none.
- Instance method Operates on the instance which owns it.
- Class method Does not work on individual instances, only on the class itself.
Classes
The fundamental software component in object-oriented software development is the class. A class is the implementation of a data type. It defines its behavior (the services offered by its functions) and its representation (the data structure of the class – the fields, which store its data).
Classes fall into three categories:
- Ordinary classes.
- Abstract classes. An abstract class cannot be instantiated. The purpose of having such classes is to have a given behavior shared by a hierarchy of classes and dependent on the implementation of the descendants. This is a way of guaranteeing a certain base of inherited behavior common to all the classes based on a particular deferred class.
- Template classes. A template class offers a set of functional behaviors to manipulate other data types. Instantiation of a template class requires that a data type is given for its argument(s).
Inheritance
The purpose of inheritance is to reduce the development workload. The inheritance mechanism allows a new class to be declared already containing the characteristics of an existing class. This new class can then be rapidly specialized for the task in hand. This avoids the necessity of developing each component “from scratch”. For example, having already developed a class BankAccount you could quickly specialize new classes: SavingsAccount, LongTermDepositAccount, MoneyMarketAccount, RevolvingCreditAccount, etc....
The corollary of this is that when two or more classes inherit from a parent (or ancestor) class, all these classes guarantee as a minimum the behavior of their parent (or ancestor). For example, if the parent class BankAccount contains the method Print which tells it to print itself out, then all its descendant classes guarantee to offer the same service.
One way of ensuring the use of inheritance is to declare classes at the top of a hierarchy as being abstract. In such classes, the methods are not implemented. This forces the user to create a new class which redefines the methods. This is a way of guaranteeing a certain minimum of behavior among descendant classes.

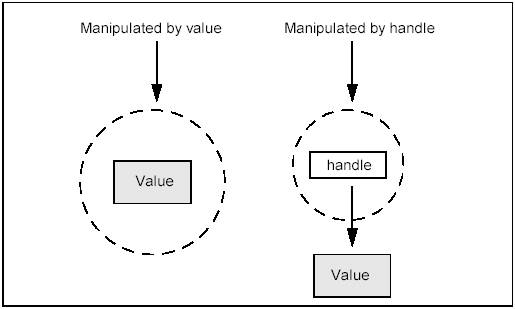

Data Types
An object-oriented language structures a system around data types rather than around the actions carried out on this data. In this context, an object is an instance of a data type and its definition determines how it can be used. Each data type is implemented by one or more classes, which make up the basic elements of the system.
The data types in Open CASCADE Technology fall into two categories:
- Data types manipulated by handle (or reference)
- Data types manipulated by value
A data type is implemented as a class. The class not only defines its data representation and the methods available on instances, but it also suggests how the instance will be manipulated.
- A variable of a type manipulated by value contains the instance itself.
- A variable of a type manipulated by handle contains a reference to the instance. The first examples of types manipulated by values are the predefined primitive types: Boolean, Character, Integer, Real, etc.
A variable of a type manipulated by handle which is not attached to an object is said to be null. To reference an object, we instantiate the class with one of its constructors. For example, in C++:
In Open CASCADE Technology, the Handles are specific classes that are used to safely manipulate objects allocated in the dynamic memory by reference, providing reference counting mechanism and automatic destruction of the object when it is not referenced.
Primitive Types
The primitive types are predefined in the language and they are manipulated by value.
- Boolean is used to represent logical data. It may have only two values: Standard_True and Standard_False.
- Character designates any ASCII character.
- ExtCharacter is an extended character.
- Integer is a whole number.
- Real denotes a real number (i.e. one with whole and a fractional part, either of which may be null).
- ShortReal is a real with a smaller choice of values and memory size.
- CString is used for literal constants.
- ExtString is an extended string.
- Address represents a byte address of undetermined size.
The services offered by each of these types are described in the Standard Package. The table below presents the equivalence existing between C++ fundamental types and OCCT primitive types.
Table 1: Equivalence between C++ Types and OCCT Primitive Types
| C++ Types | OCCT Types |
|---|---|
| int | Standard_Integer |
| double | Standard_Real |
| float | Standard_ShortReal |
| unsigned int | Standard_Boolean |
| char | Standard_Character |
| short | Standard_ExtCharacter |
| char* | Standard_CString |
| void* | Standard_Address |
| short* | Standard_ExtString |
- The types with asterisk are pointers.
Reminder of the classes listed above:
- Standard_Integer : fundamental type representing 32-bit integers yielding negative, positive or null values. Integer is implemented as a typedef of the C++ int fundamental type. As such, the algebraic operations +, -, *, / as well as the ordering and equivalence relations <, <=, ==, !=, >=, > are defined on it.
- Standard_Real : fundamental type representing real numbers with finite precision and finite size. Real is implemented as a typedef of the C++ double (double precision) fundamental type. As such, the algebraic operations +, -, *, /, unary- and the ordering and equivalence relations <, <=, ==, !=, >=, > are defined on reals.
- Standard_ShortReal : fundamental type representing real numbers with finite precision and finite size. ShortReal is implemented as a typedef of the C++ float (simple precision) fundamental type. As such, the algebraic operations +, -, *, /, unary- and the ordering and equivalence relations <, <=, ==, !=, >=, > are defined on reals.
- Standard_Boolean : fundamental type representing logical expressions. It has two values: false and true. Boolean is implemented as a typedef of the C++ unsigned int fundamental type. As such, the algebraic operations and, or, xor and not as well as equivalence relations == and != are defined on Booleans.
- Standard_Character : fundamental type representing the normalized ASCII character set. It may be assigned the values of the 128 ASCII characters. Character is implemented as a typedef of the C++ char fundamental type. As such, the ordering and equivalence relations <, <=, ==, !=, >=, > are defined on characters using the order of the ASCII chart (ex: A B).
- Standard_ExtCharacter : fundamental type representing the Unicode character set. It is a 16-bit character type. ExtCharacter is implemented as a typedef of the C++ short fundamental type. As such, the ordering and equivalence relations <, <=, ==, !=, >=, > are defined on extended characters using the order of the UNICODE chart (ex: A B).
- Standard_CString : fundamental type representing string literals. A string literal is a sequence of ASCII (8 bits) characters enclosed in double quotes. CString is implemented as a typedef of the C++ char fundamental type.
- Standard_Address : fundamental type representing a generic pointer. Address is implemented as a typedef of the C++ void fundamental type.
- Standard_ExtString is a fundamental type representing string literals as sequences of Unicode (16 bits) characters. ExtString is implemented as a typedef of the C++ short fundamental type.

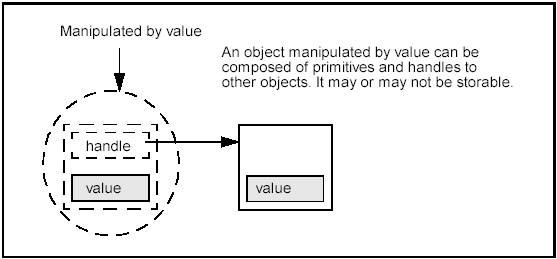

Types manipulated by value
There are three categories of types which are manipulated by value:
- Primitive types
- Enumerated types
- Types defined by classes not inheriting from Standard_Transient, whether directly or not. Types which are manipulated by value behave in a more direct fashion than those manipulated by handle and thus can be expected to perform operations faster, but they cannot be stored independently in a file.

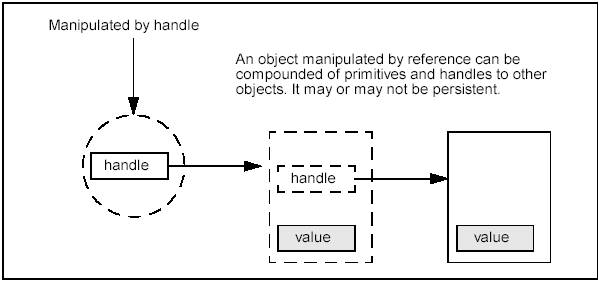

Types manipulated by reference (handle)
These are types defined by classes inheriting from the Transient class.
When is it necessary to use a handle?
When you design an object, it can be difficult to choose how to manipulate that object: by value or by handle. The following ideas can help you to make up your mind:
- If your object may have a long lifetime within the application and you want to make multiple references to it, it would be preferable to manipulate this object with a handle. The memory for the object will be allocated on the heap. The handle which points to that memory is a light object which can be rapidly passed in argument. This avoids the penalty of copying a large object.
- If your object will have a limited lifetime, for example, used within a single algorithm, it would be preferable to manipulate this object by value, non-regarding its size, because this object is allocated on the stack and the allocation and de-allocation of memory is extremely rapid, which avoids the implicit calls to new and delete occasioned by allocation on the heap.
- Finally, if an object will be created only once during, but will exist throughout the lifetime of the application, the best choice may be a class manipulated by handle or a value declared as a global variable.
Programming with Handles
Handle Definition
A handle is OCCT implementation of a smart pointer. Several handles can reference the same object. Also, a single handle may reference several objects, but only one at a time. To have access to the object it refers to, the handle must be de-referenced just as with a C++ pointer.
Organization of Classes
Class Standard_Transient is a root of a big hierarchy of OCCT classes that are said to be operable by handles. It provides a reference counter field, inherited by all its descendant classes, that is used by associated Handle() classes to track a number of handles pointing to this instance of the object.
Objects of classes derived (directly or indirectly) from Transient, are normally allocated in dynamic memory using operator new, and manipulated by handle. Handle is defined as template class opencascade::handle<>. Open CASCADE Technology provides preprocessor macro Handle() that is historically used throughout OCCT code to name a handle:
In addition, for standard OCCT classes additional typedef is defined for a handle, as the name of a class prefixed by Handle_. For instance, the above example can be also coded as:
Using a Handle
A handle is characterized by the object it references.
Before performing any operation on a transient object, you must declare the handle. For example, if Point and Line are two transient classes from the Geom package, you would write:
Declaring a handle creates a null handle that does not refer to any object. The handle may be checked to be null by its method IsNull(). To nullify a handle, use method Nullify().
To initialize a handle, either a new object should be created or the value of another handle can be assigned to it, on condition that their types are compatible.
Note that handles should only be used for object sharing. For all local operations, it is advisable to use classes manipulated by values.
Type Management
Open CASCADE Technology provides a means to describe the hierarchy of data types in a generic way, with a possibility to check the exact type of the given object at run-time (similarly to C++ RTTI).
To enable this feature, a class declaration should include the declaration of OCCT RTTI. Header Standard_Type.hxx provides two variants of preprocessor macros facilitating this:
- Inline variant, which declares and defines RTTI methods by a single line of code: #include <Geom_Surface.hxx>class Appli_ExtSurface : public Geom_Surface{. . .public:DEFINE_STANDARD_RTTIEXT(Appli_ExtSurface,Geom_Surface)};
Out-of line variant, which uses one macro in the declaration (normally in the header file), and another in the implementation (in C++ source):
In Appli_ExtSurface.hxx file:
#include <Geom_Surface.hxx>class Appli_ExtSurface : public Geom_Surface{. . .public:DEFINE_STANDARD_RTTIEXT(Appli_ExtSurface,Geom_Surface)};In Appli_ExtSurface.cxx file:
#include <Appli_ExtSurface.hxx>IMPLEMENT_STANDARD_RTTIEXT(Appli_ExtSurface,Geom_Surface)
These macros define method DynamicType() that returns a type descriptor - handle to singleton instance of the class Standard_Type describing the class. The type descriptor stores the name of the class and the descriptor of its parent class.
Note that while inline version is easier to use, for widely used classes this method may lead to bloating of binary code of dependent libraries, due to multiple instantiations of inline method.
To get the type descriptor for a given class type, use macro STANDARD_TYPE() with the name of the class as argument.
Example of usage:
Type Conformity
The type used in the declaration of a handle is the static type of the object, the type seen by the compiler. A handle can reference an object instantiated from a subclass of its static type. Thus, the dynamic type of an object (also called the actual type of an object) can be a descendant of the type which appears in the handle declaration through which it is manipulated.
Consider the class CartesianPoint, a sub-class of Point; the rule of type conformity can be illustrated as follows:
The compiler sees p1 as a handle to Point though the actual object referenced by p1 is of the CartesianPoint type.
Explicit Type Conversion
According to the rule of type conformity, it is always possible to go up the class hierarchy through successive assignments of handles. On the other hand, assignment does not authorize you to go down the hierarchy. Consequently, an explicit type conversion of handles is required.
A handle can be converted explicitly into one of its sub-types if the actual type of the referenced object is a descendant of the object used to cast the handle. If this is not the case, the handle is nullified (explicit type conversion is sometimes called a “safe cast”). Consider the example below.
If conversion is not compatible with the actual type of the referenced object, the handle which was “cast” becomes null (and no exception is raised). So, if you require reliable services defined in a sub-class of the type seen by the handle (static type), write as follows:
Downcasting is used particularly with collections of objects of different types; however, these objects should inherit from the same root class.
For example, with a sequence of transient objects SequenceOfTransient and two classes A and B that both inherit from Standard_Transient, you get the following syntax:
Using Handles to Create Objects
To create an object which is manipulated by handle, declare the handle and initialize it with the standard C++ new operator, immediately followed by a call to the constructor. The constructor can be any of those specified in the source of the class from which the object is instanced.
Unlike for a pointer, the delete operator does not work on a handle; the referenced object is automatically destroyed when no longer in use.
Invoking Methods
Once you have a handle to an object, you can use it like a pointer in C++. To invoke a method which acts on the referenced object, you translate this method by the standard arrow operator, or alternatively, by function call syntax when this is available.
To test or to modify the state of the handle, the method is translated by the dot operator. The example below illustrates how to access the coordinates of an (optionally initialized) point object:
The example below illustrates how to access the type object of a Cartesian point:
NullObject exception will be raised if a field or a method of an object is accessed via a Null handle.
Invoking Class Methods
A class method is called like a static C++ function, i.e. it is called by the name of the class of which it is a member, followed by the “::” operator and the name of the method.
For example, we can find the maximum degree of a Bezier curve:
Handle deallocation
Before you delete an object, you must ensure it is no longer referenced. To reduce the programming load related to this management of object life, the delete function in Open CASCADE Technology is secured by a reference counter of classes manipulated by handle. A handle automatically deletes an object when it is no longer referenced. Normally you never call the delete operator explicitly on instances of subclasses of Standard_Transient.
When a new handle to the same object is created, the reference counter is incremented. When the handle is destroyed, nullified, or reassigned to another object, that counter is decremented. The object is automatically deleted by the handle when reference counter becomes 0.
The principle of allocation can be seen in the example below.
You can easily cast a reference to the handle object to void* by defining the following:
Cycles
Cycles appear if two or more objects reference each other by handles (stored as fields). In this condition automatic destruction will not work.
Consider for example a graph, whose objects (primitives) have to know the graph object to which they belong, i.e. a primitive must have a reference to complete graph object. If both primitives and the graph are manipulated by handle and they refer to each other by keeping a handle as a field, the cycle appears.
The graph object will not be deleted when the last handle to it is destructed in the application, since there are handles to it stored inside its own data structure (primitives).
There are two approaches how to avoid such situation:
- Use C++ pointer for one kind of references, e.g. from a primitive to the graph
- Nullify one set of handles (e.g. handles to a graph in primitives) when a graph object needs to be destroyed
Memory Management
In a work session, geometric modeling applications create and delete a considerable number of C++ objects allocated in the dynamic memory (heap). In this context, performance of standard functions for allocating and deallocating memory may be not sufficient. For this reason, Open CASCADE Technology employs a specialized memory manager implemented in the Standard package.
The Memory Manager is based on the following principles:
- small memory arrays are grouped into clusters and then recycled (clusters are never released to the system),
- large arrays are allocated and de-allocated through the standard functions of the system (the arrays are released to system when they are no longer used).
As a general rule, it is advisable to allocate memory through significant blocks. In this way, the user can work with blocks of contiguous data and it facilitates memory page manager processing.
Usage of Memory Manager
To allocate memory in a C code with Open CASCADE Technology memory manager, simply use method Standard::Allocate() instead of malloc() and method Standard::Free() instead of free(). In addition, method Standard::Reallocate() is provided to replace C function realloc().
In C++, operators new() and delete() for a class may be defined so as to allocate memory using Standard::Allocate() and free it using Standard::Free(). In that case all objects of that class and all inherited classes will be allocated using the OCCT memory manager.
Preprocessor macro DEFINE_STANDARD_ALLOC provided by header Standard_DefineAlloc.hxx defines new() and delete() in this way. It is used for all OCCT classes (apart from a few exceptions) which thus are allocated using the OCCT memory manager. Since operators new() and delete() are inherited, this is also true for any class derived from an OCCT class, for instance, for all classes derived from Standard_Transient.
Note that it is possible (though not recommended unless really unavoidable) to redefine new() and delete() functions for a class inheriting Standard_Transient. If that is done, the method Delete() should be also redefined to apply operator delete to this pointer. This will ensure that appropriate delete() function will be called, even if the object is manipulated by a handle to a base class.
How to configure the Memory Manager
The OCCT memory manager may be configured to apply different optimization techniques to different memory blocks (depending on their size), or even to avoid any optimization and use C functions malloc() and free() directly. The configuration is defined by numeric values of the following environment variables:
- MMGT_OPT: if set to 0 (default) every memory block is allocated in C memory heap directly (via malloc() and free() functions). In this case, all other options except for MMGT_CLEAR are ignored; if set to 1 the memory manager performs optimizations as described below; if set to 2, Intel ® TBB optimized memory manager is used.
- MMGT_CLEAR: if set to 1 (default), every allocated memory block is cleared by zeros; if set to 0, memory block is returned as it is.
- MMGT_CELLSIZE: defines the maximal size of blocks allocated in large pools of memory. Default is 200.
- MMGT_NBPAGES: defines the size of memory chunks allocated for small blocks in pages (operating-system dependent). Default is 1000.
- MMGT_THRESHOLD: defines the maximal size of blocks that are recycled internally instead of being returned to the heap. Default is 40000.
- MMGT_MMAP: when set to 1 (default), large memory blocks are allocated using memory mapping functions of the operating system; if set to 0, they will be allocated in the C heap by malloc().
Optimization Techniques
When MMGT_OPT is set to 1, the following optimization techniques are used:
- Small blocks with a size less than MMGT_CELLSIZE, are not allocated separately. Instead, a large pools of memory are allocated (the size of each pool is MMGT_NBPAGES pages). Every new memory block is arranged in a spare place of the current pool. When the current memory pool is completely occupied, the next one is allocated, and so on.
In the current version memory pools are never returned to the system (until the process finishes). However, memory blocks that are released by the method Standard::Free() are remembered in the free lists and later reused when the next block of the same size is allocated (recycling).
- Medium-sized blocks, with a size greater than MMGT_CELLSIZE but less than MMGT_THRESHOLD, are allocated directly in the C heap (using malloc() and free()). When such blocks are released by the method Standard::Free() they are recycled just like small blocks.
However, unlike small blocks, the recycled medium blocks contained in the free lists (i.e. released by the program but held by the memory manager) can be returned to the heap by method Standard::Purge().
- Large blocks with a size greater than MMGT_THRESHOLD, including memory pools used for small blocks, are allocated depending on the value of MMGT_MMAP: if it is 0, these blocks are allocated in the C heap; otherwise they are allocated using operating-system specific functions managing memory mapped files. Large blocks are returned to the system immediately when Standard::Free() is called.
Benefits and drawbacks
The major benefit of the OCCT memory manager is explained by its recycling of small and medium blocks that makes an application work much faster when it constantly allocates and frees multiple memory blocks of similar sizes. In practical situations, the real gain on the application performance may be up to 50%.
The associated drawback is that recycled memory is not returned to the operating system during program execution. This may lead to considerable memory consumption and even be misinterpreted as a memory leak. To minimize this effect it is necessary to call the method Standard::Purge after the completion of memory-intensive operations.
The overhead expenses induced by the OCCT memory manager are:
- size of every allocated memory block is rounded up to 8 bytes (when MMGT_OPT is 0 (default), the rounding is defined by the CRT; the typical value for 32-bit platforms is 4 bytes)
- additional 4 bytes (or 8 on 64-bit platforms) are allocated in the beginning of every memory block to hold its size (or address of the next free memory block when recycled in free list) only when MMGT_OPT is 1.
Note that these overheads may be greater or less than overheads induced by the C heap memory manager, so overall memory consumption may be greater in either optimized or standard modes, depending on circumstances.
As a general rule, it is advisable to allocate memory through significant blocks. In this way, you can work with blocks of contiguous data, and processing is facilitated for the memory page manager.
OCCT memory manager uses mutex to lock access to free lists, therefore it may have less performance than non-optimized mode in situations when different threads often make simultaneous calls to the memory manager. The reason is that modern implementations of malloc() and free() employ several allocation arenas and thus avoid delays waiting mutex release, which are possible in such situations.
Exceptions
Introduction
The behavior of any object is implemented by the methods, which were defined in its class declaration. The definition of these methods includes not only their signature (their programming interface) but also their domain of validity.
This domain is expressed by exceptions. Exceptions are raised under various error conditions to protect software quality.
Exception handling provides a means of transferring control from a given point in a program being executed to an exception handler associated with another point previously executed.
A method may raise an exception which interrupts its normal execution and transfers control to the handler catching this exception.
A hierarchy of commonly used exception classes is provided. The root class is Standard_Failure from the Standard package. So each exception inherits from Standard_Failure either directly or by inheriting from another exception. Exception classes list all exceptions, which can be raised by any OCCT function.
Open CASCADE Technology also provides support for converting system signals (such as access violation or division by zero) to exceptions, so that such situations can be safely handled with the same uniform approach.
However, in order to support this functionality on various platforms, some special methods and workarounds are used. Though the implementation details are hidden and handling of OCCT exceptions is done basically in the same way as with C++, some peculiarities of this approach shall be taken into account and some rules must be respected.
The following paragraphs describe recommended approaches for using exceptions when working with Open CASCADE Technology.
Raising an Exception
“C++ like” Syntax
To raise an exception of a definite type method Raise() of the appropriate exception class shall be used.
raises an exception of DomainError type with the associated message “Cannot cope with this condition”, the message being optional. This exception may be caught by a handler of a DomainError type as follows:
Regular usage
Exceptions should not be used as a programming technique, to replace a “goto” statement for example, but as a way to protect methods against misuse. The caller must make sure its condition is such that the method can cope with it.
Thus,
- No exception should be raised during normal execution of an application.
- A method which may raise an exception should be protected by other methods allowing the caller to check on the validity of the call.
For example, if you consider the TCollection_Array1 class used with:
- Value function to extract an element
- Lower function to extract the lower bound of the array
- Upper function to extract the upper bound of the array.
then, the Value function may be implemented as follows:
Here validity of the index is first verified using the Lower and Upper functions in order to protect the call. Normally the caller ensures the index being in the valid range before calling Value(). In this case the above implementation of Value is not optimal since the test done in Value is time-consuming and redundant.
It is a widely used practice to include that kind of protections in a debug build of the program and exclude in release (optimized) build. To support this practice, the macros Raise_if() are provided for every OCCT exception class:
where ErrorTypeName is the exception type, condition is the logical expression leading to the raise of the exception, and Error message is the associated message.
The entire call may be removed by defining one of the preprocessor symbols No_Exception or No_<ErrorTypeName> at compile-time:
Using this syntax, the Value function becomes:
Handling an Exception
When an exception is raised, control is transferred to the nearest handler of a given type in the call stack, that is:
- the handler whose try block was most recently entered and not yet exited,
- the handler whose type matches the raise expression.
A handler of T exception type is a match for a raise expression with an exception type of E if:
- T and E are of the same type, or
- T is a supertype of E.
In order to handle system signals as exceptions, make sure to insert macro OCC_CATCH_SIGNALS somewhere in the beginning of the relevant code. The recommended location for it is first statement after opening brace of try {} block.
As an example, consider the exceptions of type NumericError, Overflow, Underflow and ZeroDivide, where NumericError is the parent type of the three others.
Here, the first handler will catch exceptions of Overflow type and the second one – exceptions of NumericError type and all exceptions derived from it, including Underflow and ZeroDivide.
The handlers are checked in order of appearance, from the nearest to the try block to the most distant from it, until one matches the raise expression. For a try block, it would be a mistake to place a handler for a base exception type ahead of a handler for its derived type since that would ensure that the handler for the derived exception would never be invoked.
The exceptions form a hierarchy tree completely separated from other user defined classes. One exception of type Failure is the root of the entire exception hierarchy. Thus, using a handler with Failure type catches any OCCT exception. It is recommended to set up such a handler in the main routine.
The main routine of a program would look like this:
In this example function Caught is a static member of Failure that returns an exception object containing the error message built in the raise expression. Note that this method of accessing a raised object is used in Open CASCADE Technology instead of usual C++ syntax (receiving the exception in catch argument).
Though standard C++ scoping rules and syntax apply to try block and handlers, note that on some platforms Open CASCADE Technology may be compiled in compatibility mode when exceptions are emulated by long jumps (see below). In this mode it is required that no statement precedes or follows any handler. Thus it is highly recommended to always include a try block into additional {} braces. Also this mode requires that header file Standard_ErrorHandler.hxx be included in your program before a try block, otherwise it may fail to handle Open CASCADE Technology exceptions; furthermore catch() statement does not allow passing exception object as argument.
Catching signals
In order for the application to be able to catch system signals (access violation, division by zero, etc.) in the same way as other exceptions, the appropriate signal handler shall be installed in the runtime by the method OSD::SetSignal().
Normally this method is called in the beginning of the main() function. It installs a handler that will convert system signals into OCCT exceptions.
In order to actually convert signals to exceptions, macro OCC_CATCH_SIGNALS needs to be inserted in the source code. The typical place where this macro is put is beginning of the try{} block which catches such exceptions.
Implementation on various platforms.
The exception handling mechanism in Open CASCADE Technology is implemented in different ways depending on the preprocessor macro OCC_CONVERT_SIGNALS, which shall be consistently defined by compilation procedures for both Open CASCADE Technology and user applications:
- On Windows, these macros are not defined by default, and normal C++ exceptions are used in all cases, including throwing from signal handler. Thus the behavior is as expected in C++.
On Linux, macro OCC_CONVERT_SIGNALS is defined by default. The C++ exception mechanism is used for catching exceptions and for throwing them from normal code. Since it is not possible to throw C++ exception from system signal handler function, that function makes a long jump to the nearest (in the execution stack) invocation of macro OCC_CATCH_SIGNALS, and only there the C++ exception gets actually thrown. The macro OCC_CATCH_SIGNALS is defined in the file Standard_ErrorHandler.hxx. Therefore, including this file is necessary for successful compilation of a code containing this macro.
This mode differs from standard C++ exception handling only for signals:
- macro OCC_CATCH_SIGNALS is necessary (besides call to OSD::SetSignal() described above) for conversion of signals into exceptions;
- the destructors for automatic C++ objects created in the code after that macro and till the place where signal is raised will not be called in case of signal, since no C++ stack unwinding is performed by long jump.
In general, for writing platform-independent code it is recommended to insert macros OCC_CATCH_SIGNALS in try {} blocks or other code where signals may happen.
Plug-In Management
Distribution by Plug-Ins
A plug-in is a component that can be loaded dynamically into a client application, not requiring to be directly linked to it. The plug-in is not bound to its client, i.e. the plug-in knows only how its connection mechanism is defined and how to call the corresponding services.
A plug-in can be used to:
- implement the mechanism of a driver, i.e dynamically changing a driver implementation according to the current transactions (for example, retrieving a document stored in another version of an application),
- restrict processing resources to the minimum required (for example, it does not load any application services at run-time as long as the user does not need them),
- facilitate modular development (an application can be delivered with base functions while some advanced capabilities will be added as plug-ins when they are available).
The plug-in is identified with the help of the global universal identifier (GUID). The GUID includes lower case characters and cannot end with a blank space.
Once it has been loaded, the call to the services provided by the plug-in is direct (the client is implemented in the same language as the plug-in).
C++ Plug-In Implementation
The C++ plug-in implements a service as an object with functions defined in an abstract class (this abstract class and its parent classes with the GUID are the only information about the plug-in implemented in the client application). The plug-in consists of a sharable library including a method named Factory which creates the C++ object (the client cannot instantiate this object because the plug-in implementation is not visible). Foundation classes provide in the package Plugin a method named Load(), which enables the client to access the required service through a library.
That method reads the information regarding available plug-ins and their locations from the resource file Plugin found by environment variable CSF_PluginDefaults:
The Load method looks for the library name in the resource file or registry through its GUID, for example, on UNIX:
Then the Load method loads the library according to the rules of the operating system of the host machine (for example, by using environment variables such as LD_LIBRARY_PATH with Unix and PATH with Windows). After that it invokes the PLUGINFACTORY method to return the object, which supports the required service. The client may then call the functions supported by this object.
C++ Client Plug-In Implementation
To invoke one of the services provided by the plug-in, you may call the Plugin::Load() global function with the Standard_GUID of the requested service as follows:
Let us take FAFactory.hxx and FAFactory.cxx as an example:
Application might also instantiate a factory by linking to the library and calling FAFactory::Factory() directly.
Collections, Strings, Quantities and Unit Conversion
Collections
Overview
The Collections component contains the classes that handle dynamically sized aggregates of data. They include a wide range of collections such as arrays, lists and maps.
Collections classes are generic (C++ template-like), that is, they define a structure and algorithms allowing to hold a variety of objects which do not necessarily inherit from a unique root class (similarly to C++ templates).
When you need to use a collection of a given type of object you must instantiate it for this specific type of element. Once this declaration is compiled, all the functions available on the generic collection are available on your instantiated class.
However, note that:
- Each collection directly used as an argument in OCCT public syntax is instantiated in an OCCT component.
- The TColStd package (Collections of Standard Objects component) provides numerous instantiations of these generic collections with objects from the Standard package or from the Strings component. The Collections component provides a wide range of generic collections:
- Arrays are generally used for a quick access to the item, however an array is a fixed sized aggregate.
- Sequences are variable-sized structures, they avoid the use of large and quasi-empty arrays. A sequence item is longer to access than an array item: only an exploration in sequence is effective (but sequences are not adapted for numerous explorations). Arrays and sequences are commonly used as data structures for more complex objects.
- Maps are dynamic structures, where the size is constantly adapted to the number of inserted items and access to an item is the fastest. Maps structures are commonly used in cases of numerous explorations: they are typically internal data structures for complex algorithms.
- Lists are similar to sequences but have different algorithms to explore them.
- Specific iterators for sequences and maps.
Generic general-purpose Aggregates
TCollection_Array1
These are unidimensional arrays similar to C arrays, i.e. of fixed size but dynamically dimensioned at construction time. As with a C array, the access time for an Array1 indexed item is constant and is independent of the array size. Arrays are commonly used as elementary data structures for more complex objects.
Array1 is a generic class which depends on Item, the type of element in the array.
Array1 indexes start and end at a user-defined position. Thus, when accessing an item, you must base the index on the lower and upper bounds of the array.
TCollection_Array2
These are bi-dimensional arrays of fixed size but dynamically dimensioned at construction time.
As with a C array, the access time for an Array2 indexed item is constant and is independent of the array size. Arrays are commonly used as elementary data structures for more complex objects.
Array2 is a generic class which depends on Item, the type of element in the array.
Array2 indexes start and end at a user-defined position. Thus, when accessing an item, you must base the index on the lower and upper bounds of the array.
TCollection_HArray1
These are unidimensional arrays similar to C arrays, i.e. of fixed size but dynamically dimensioned at construction time. As with a C array, the access time for an HArray1 or HArray2 indexed item is constant and is independent of the array size. Arrays are commonly used as elementary data structures for more complex objects.
HArray1 objects are handles to arrays.
- HArray1 arrays may be shared by several objects.
- You may use a TCollection_Array1 structure to have the actual array.
HArray1 is a generic class which depends on two parameters:
- Item, the type of element in the array,
- Array, the actual type of array handled by HArray1. This is an instantiation with Item of the TCollection_Array1 generic class.
HArray1 indexes start and end at a user-defined position. Thus, when accessing an item, you must base the index on the lower and upper bounds of the array.
TCollection_HArray2
These are bi-dimensional arrays of fixed size but dynamically dimensioned at construction time.
As with a C array, the access time for an HArray2 indexed item is constant and is independent of the array size. Arrays are commonly used as elementary data structures for more complex objects.
HArray2 objects are handles to arrays.
- HArray2 arrays may be shared by several objects.
- You may use a TCollection_Array2 structure to have the actual array.
HArray2 is a generic class which depends on two parameters:
- Item, the type of element in the array,
- Array, the actual type of array handled by HArray2. This is an instantiation with Item of the TCollection_Array2 generic class.
TCollection_HSequence
This is a sequence of items indexed by an integer.
Sequences have about the same goal as unidimensional arrays TCollection_HArray1: they are commonly used as elementary data structures for more complex objects. But a sequence is a structure of variable size: sequences avoid the use of large and quasi-empty arrays. Exploring a sequence data structure is effective when the exploration is done in sequence; elsewhere a sequence item is longer to read than an array item. Note also that sequences are not effective when they have to support numerous algorithmic explorations: a map is better for that.
HSequence objects are handles to sequences.
- HSequence sequences may be shared by several objects.
- You may use a TCollection_Sequence structure to have the actual sequence.
HSequence is a generic class which depends on two parameters:
- Item, the type of element in the sequence,
- Seq, the actual type of sequence handled by HSequence. This is an instantiation with Item of the TCollection_Sequence generic class.
TCollection_List
These are ordered lists of non-unique objects which can be accessed sequentially using an iterator. Item insertion in a list is very fast at any position. But searching for items by value may be slow if the list is long, because it requires a sequential search.
List is a generic class, which depends on Item, the type of element in the structure. Use a ListIterator iterator to explore a List structure.
An iterator class is automatically instantiated from the TCollection_ListIterator class at the time of instantiation of a List structure.
A sequence is a better structure when searching for items by value.
Queues and stacks are other kinds of list with a different access to data.
TCollection_Sequence
This is a sequence of items indexed by an integer. Sequences have about the same goal as unidimensional arrays (TCollection_Array1): they are commonly used as elementary data structures for more complex objects. But a sequence is a structure of variable size: sequences avoid the use of large and quasi-empty arrays. Exploring a sequence data structure is effective when the exploration is done in sequence; elsewhere a sequence item is longer to read than an array item. Note also that sequences are not effective when they have to support numerous algorithmic explorations: a map is better for that.
Sequence is a generic class which depends on Item, the type of element in the sequence.
Generic Maps
Maps are dynamically extended data structures where data is quickly accessed with a key. TCollection_BasicMap is a root class for maps.
General properties of maps
Map items may contain complex non-unitary data, thus it can be difficult to manage them with an array. The map allows a data structure to be indexed by complex data.
The size of a map is dynamically extended. So a map may be first dimensioned for a little number of items. Maps avoid the use of large and quasi-empty arrays.
The access time for a map item is much better than the one for a sequence, list, queue or stack item. It is comparable with the access time for an array item. It depends on the size of the map and on the quality of the user redefinable function (the hashing function) to find quickly where is the item.
The performance of a map exploration may be better of an array exploration because the size of the map is adapted to the number of inserted items.
That is why maps are commonly used as internal data structures for algorithms.
Definitions
A map is a data structure for which data are addressed by keys.
Once inserted in the map, a map item is referenced as an entry of the map.
Each entry of the map is addressed by a key. Two different keys address two different entries of the map. The position of an entry in the map is called a bucket.
A map is dimensioned by its number of buckets, i.e. the maximum number of entries in the map. The performance of a map is conditioned by the number of buckets.
The hashing function transforms a key into a bucket index. The number of values that can be computed by the hashing function is equal to the number of buckets of the map.
Both the hashing function and the equality test between two keys are provided by a hasher object.
A map may be explored by a map iterator. This exploration provides only inserted entries in the map (i.e. non empty buckets).
Collections of generic maps
The Collections component provides numerous generic derived maps.
These maps include automatic management of the number of buckets: they are automatically resized when the number of keys exceeds the number of buckets. If you have a fair idea of the number of items in your map, you can save on automatic resizing by specifying a number of buckets at the time of construction, or by using a resizing function. This may be considered for crucial optimization issues.
Keys, items and hashers are parameters of these generic derived maps.
TCollection_MapHasher class describes the functions required by any hasher, which is to be used with a map instantiated from the Collections component.
An iterator class is automatically instantiated at the time of instantiation of a map provided by the Collections component if this map is to be explored with an iterator. Note that some provided generic maps are not to be explored with an iterator but with indexes (indexed maps).
TCollection_DataMap
This is a map used to store keys with associated items. An entry of DataMap is composed of both the key and the item. The DataMap can be seen as an extended array where the keys are the indexes.
DataMap is a generic class which depends on three parameters:
- Key is the type of key for an entry in the map,
- Item is the type of element associated with a key in the map,
- Hasher is the type of hasher on keys.
Use a DataMapIterator iterator to explore a DataMap map.
An iterator class is automatically instantiated from the TCollection_DataMapIterator generic class at the time of instantiation of a DataMap map.
TCollection_MapHasher class describes the functions required for a Hasher object.
TCollection_DoubleMap
This is a map used to bind pairs of keys (Key1,Key2) and retrieve them in linear time.
Key1 is referenced as the first key of the DoubleMap and Key2 as the second key.
An entry of a DoubleMap is composed of a pair of two keys: the first key and the second key.
DoubleMap is a generic class which depends on four parameters:
- Key1 is the type of the first key for an entry in the map,
- Key2 is the type of the second key for an entry in the map,
- Hasher1 is the type of hasher on first keys,
- Hasher2 is the type of hasher on second keys.
Use DoubleMapIterator to explore a DoubleMap map.
An iterator class is automatically instantiated from the TCollection_DoubleMapIterator class at the time of instantiation of a DoubleMap map.
TCollection_MapHasher class describes the functions required for a Hasher1 or a Hasher2 object.
TCollection_IndexedDataMap
This is map to store keys with associated items and to bind an index to them.
Each new key stored in the map is assigned an index. Indexes are incremented as keys (and items) stored in the map. A key can be found by the index, and an index can be found by the key. No key but the last can be removed, so the indexes are in the range 1...Upper, where Upper is the number of keys stored in the map. An item is stored with each key.
An entry of an IndexedDataMap is composed of both the key, the item and the index. An IndexedDataMap is an ordered map, which allows a linear iteration on its contents. It combines the interest:
- of an array because data may be accessed with an index,
- and of a map because data may also be accessed with a key.
IndexedDataMap is a generic class which depends on three parameters:
- Key is the type of key for an entry in the map,
- Item is the type of element associated with a key in the map,
- Hasher is the type of hasher on keys.
TCollection_IndexedMap
This is map used to store keys and to bind an index to them.
Each new key stored in the map is assigned an index. Indexes are incremented as keys stored in the map. A key can be found by the index, and an index by the key. No key but the last can be removed, so the indexes are in the range 1...Upper where Upper is the number of keys stored in the map.
An entry of an IndexedMap is composed of both the key and the index. An IndexedMap is an ordered map, which allows a linear iteration on its contents. But no data is attached to the key. An IndexedMap is typically used by an algorithm to know if some action is still performed on components of a complex data structure.
IndexedMap is a generic class which depends on two parameters:
- Key is the type of key for an entry in the map,
- Hasher is the type of hasher on keys.
TCollection_Map
This is a basic hashed map, used to store and retrieve keys in linear time.
An entry of a Map is composed of the key only. No data is attached to the key. A Map is typically used by an algorithm to know if some action is still performed on components of a complex data structure.
Map is a generic class which depends on two parameters:
- Key is the type of key in the map,
- Hasher is the type of hasher on keys.
Use a MapIterator iterator to explore a Map map.
TCollection_MapHasher
This is a hasher on the keys of a map instantiated from the Collections component.
A hasher provides two functions:
- HashCode() function transforms a key into a bucket index in the map. The number of values that can be computed by the hashing function is equal to the number of buckets in the map.
- IsEqual is the equality test between two keys. Hashers are used as parameters in generic maps provided by the Collections component.
MapHasher is a generic class which depends on the type of keys, providing that Key is a type from the Standard package. In such cases MapHasher may be directly instantiated with Key. Note that the package TColStd provides some of these instantiations.
Elsewhere, if Key is not a type from the Standard package you must consider MapHasher as a template and build a class which includes its functions, in order to use it as a hasher in a map instantiated from the Collections component.
Note that TCollection_AsciiString and TCollection_ExtendedString classes correspond to these specifications, in consequence they may be used as hashers: when Key is one of these two types you may just define the hasher as the same type at the time of instantiation of your map.
Iterators
TCollection_BasicMapIterator
This is a root class for map iterators. A map iterator provides a step by step exploration of all the entries of a map.
TCollection_DataMapIterator
These are functions used for iterating the contents of a DataMap map.
A map is a non-ordered data structure. The order in which entries of a map are explored by the iterator depends on its contents and change when the map is edited. It is not recommended to modify the contents of a map during the iteration: the result is unpredictable.
TCollection_DoubleMapIterator
These are functions used for iterating the contents of a DoubleMap map.
TCollection_ListIterator
These are unctions used for iterating the contents of a List data structure.
A ListIterator object can be used to go through a list sequentially, and as a bookmark to hold a position in a list. It is not an index, however. Each step of the iteration gives the current position of the iterator, to which corresponds the current item in the list. The current position is not defined if the list is empty, or when the exploration is finished.
An iterator class is automatically instantiated from this generic class at the time of instantiation of a List data structure.
TCollection_MapIterator
These are functions used for iterating the contents of a Map map. An iterator class is automatically instantiated from this generic class at the time of instantiation of a Map map.
TCollection_SetIterator
These are functions used for iterating the contents of a Set data structure. An iterator class is automatically instantiated from this generic class at the time of instantiation of a Set structure.
TCollection_StackIterator
These are functions used for iterating the contents of a Stack data structure.
An iterator class is automatically instantiated from this generic class at the time of instantiation of a Stack structure.
Collections of Standard Objects
Overview
While generic classes of the TCollection package are the root classes that describe the generic purpose of every type of collection, classes effectively used are extracted from the TColStd package. The TColStd and TShort packages provide frequently used instantiations of generic classes with objects from the Standard package or strings from the TCollection package.
Description
These instantiations are the following:
- Unidimensional arrays: instantiations of the TCollection_Array1 generic class with Standard Objects and TCollection strings.
- Bidimensional arrays: instantiations of the TCollection_Array2 generic class with Standard Objects.
- Unidimensional arrays manipulated by handles: instantiations of the TCollection_HArray1 generic class with Standard Objects and TCollection strings.
- Bidimensional arrays manipulated by handles: instantiations of the TCollection_HArray2 generic class with Standard Objects.
- Sequences: instantiations of the TCollection_Sequence generic class with Standard objects and TCollection strings.
- Sequences manipulated by handles: instantiations of the TCollection_HSequence generic class with Standard objects and TCollection strings.
- Lists: instantiations of the TCollection_List generic class with Standard objects.
- Queues: instantiations of the TCollection_Queue generic class with Standard objects.
- Sets: instantiations of the TCollection_Set generic class with Standard objects.
- Sets manipulated by handles: instantiations of the TCollection_HSet generic class with Standard objects.
- Stacks: instantiations of the TCollection_Stack generic class with Standard objects.
- Hashers on map keys: instantiations of the TCollection_MapHasher generic class with Standard objects.
- Basic hashed maps: instantiations of the TCollection_Map generic class with Standard objects.
- Hashed maps with an additional item: instantiations of the TCollection_DataMap generic class with Standard objects.
- Basic indexed maps: instantiations of the TCollection_IndexedMap generic class with Standard objects.
- Indexed maps with an additional item: instantiations of the TCollection_IndexedDataMap generic class with Standard_Transient objects.
- Class TColStd_PackedMapOfInteger provides alternative implementation of map of integer numbers, optimized for both performance and memory usage (it uses bit flags to encode integers, which results in spending only 24 bytes per 32 integers stored in optimal case). This class also provides Boolean operations with maps as sets of integers (union, intersection, subtraction, difference, checks for equality and containment).
NCollections
Overview
The NCollection package provides a set of template collection classes used throughout OCCT.
Macro definitions of these classes are stored in NCollection_Define*.hxx files. These definitions are now obsolete though still can be used, particularly for compatibility with the existing code.
Instantiation of collection classes
Now we are going to implement the definitions from NCollection in the code, taking as an example a sequence of points (analogue of TColgp_SequenceOfPnt).
Definition of a new collection class
Let the header file be MyPackage_SequenceOfPnt.hxx :
Template class instantiaton
Macro instantiation
The following line defines the class "base collection of points"
The following line defines the class MyPackage_SequenceOfPnt
Definition of a new collection class managed by Handle
It is necessary to provide relevant statements both in the header ( .hxx file) and the C++ source ( .cxx file).
Header file MyPackage_HSequenceOfPnt.hxx:
The following line defines the class "base collection of points"
The following line defines the class MyPackage_SequenceOfPnt
The following line defines the classes MyPackage_HSequenceOfPnt and Handle(MyPackage_HSequenceOfPnt)
Source code file will be MyPackage_HSequenceOfPnt.cxx or any other .cxx file (once in the whole project):
Arrays and sequences
Standard collections provided by OCCT are:
- NCollection_Array1 – fixed-size (at initialization) one-dimensional array; note that the index can start at any value, usually 1;
- NCollection_Array2 – fixed-size (at initialization) two-dimensional array; note that the index can start at any value, usually 1;
- NCollection_List – plain list;
- NCollection_Sequence – double-connected list with access by index; note that the index starts at 1.
These classes provide STL-style iterators (methods begin() and end()) and thus can be used in STL algorithms.
Maps
NCollection provides several classes for storage of objects by value, providing fast search due to use of hash:
- NCollection_Map – hash set;
- NCollection_IndexedMap – set with a prefixed order of elements, allowing fast access by index or by value (hash-based);
- NCollection_DataMap – hash map;
- NCollection_IndexedDataMap – map with a prefixed order of elements, allowing fast access by index or by value (hash-based);
- NCollection_DoubleMap – two-side hash map (with two keys).
Other collection types
There are 4 collection types provided as template classes:
- NCollection_Vector
- NCollection_UBTree
- NCollection_SparseArray
- NCollection_CellFilter
Vector
This type is implemented internally as a list of arrays of the same size. Its properties:
- Direct (constant-time) access to members like in Array1 type; data are allocated in compact blocks, this provides faster iteration.
- Can grow without limits, like List, Stack or Queue types.
- Once having the size LEN, it cannot be reduced to any size less than LEN – there is no operation of removal of items.
Insertion in a Vector-type class is made by two methods:
- SetValue(ind, theValue) – array-type insertion, where ind is the index of the inserted item, can be any non-negative number. If it is greater than or equal to Length(), then the vector is enlarged (its Length() grows).
- Append(theValue) – list-type insertion equivalent to myVec.SetValue(myVec.Length(), theValue), incrementing the size of the collection.
Other essential properties coming from List and Array1 type collections:
- Like in List, the method Clear() destroys all contained objects and releases the allocated memory.
- Like in Array1, the methods Value() and ChangeValue() return a contained object by index. Also, these methods have the form of overloaded operator ().
UBTree
The name of this type stands for “Unbalanced Binary Tree”. It stores the members in a binary tree of overlapped bounding objects (boxes or else). Once the tree of boxes of geometric objects is constructed, the algorithm is capable of fast geometric selection of objects. The tree can be easily updated by adding to it a new object with bounding box. The time of adding to the tree of one object is O(log(N)), where N is the total number of objects, so the time of building a tree of N objects is O(N(log(N)). The search time of one object is O(log(N)).
Defining various classes inheriting NCollection_UBTree::Selector we can perform various kinds of selection over the same b-tree object.
The object may be of any type allowing copying. Among the best suitable solutions there can be a pointer to an object, handled object or integer index of object inside some collection. The bounding object may have any dimension and geometry. The minimal interface of TheBndType (besides public empty and copy constructor and operator =) used in UBTree algorithm as follows:
This interface is implemented in types of Bnd package: Bnd_Box, Bnd_Box2d, Bnd_B2x, Bnd_B3x.
To select objects you need to define a class derived from UBTree::Selector that should redefine the necessary virtual methods to maintain the selection condition. Usually this class instance is also used to retrieve selected objects after search. The class UBTreeFiller is used to randomly populate a UBTree instance. The quality of a tree is better (considering the speed of searches) if objects are added to it in a random order trying to avoid the addition of a chain of nearby objects one following another. Instantiation of UBTreeFiller collects objects to be added, and then adds them at once to the given UBTree instance in a random order using the Fisher-Yates algorithm. Below is the sample code that creates an instance of NCollection_UBTree indexed by 2D boxes (Bnd_B2f), then a selection is performed returning the objects whose bounding boxes contain the given 2D point.
SparseArray
This type has almost the same features as Vector but it allows to store items having scattered indices. In Vector, if you set an item with index 1000000, the container will allocate memory for all items with indices in the range 0-1000000. In SparseArray, only one small block of items will be reserved that contains the item with index 1000000.
This class can be also seen as equivalence of DataMap<int,TheItemType> with the only one practical difference: it can be much less memory-expensive if items are small (e.g. Integer or Handle).
This type has both interfaces of DataMap and Vector to access items.
CellFilter
This class represents a data structure for sorting geometric objects in n-dimensional space into cells, with associated algorithm for fast checking of coincidence (overlapping, intersection, etc.) with other objects. It can be considered as a functional alternative to UBTree, as in the best case it provides the direct access to an object like in an n-dimensional array, while search with UBTree provides logarithmic law access time.
Features
NCollection defines some specific features, in addition to the public API inherited from TCollection classes.
Iterators
Every collection defines its Iterator class capable of iterating the members in some predefined order. Every Iterator is defined as a subtype of the particular collection type (e.g., MyPackage_StackOfPnt::Iterator ). The order of iteration is defined by a particular collection type. The methods of Iterator are:
- void Init (const MyCollection&) – initializes the iterator on the collection object;
- Standard_Boolean More () const – makes a query if there is another non-iterated member;
- void Next () – increments the iterator;
- const ItemType& Value () const – returns the current member;
- ItemType& ChangeValue () const – returns the mutable current member
This feature is present only for some classes in TCollection (Stack, List, Set, Map, DataMap, DoubleMap). In NCollection it is generalized.
Class BaseCollection
There is a common abstract base class for all collections for a given item type (e.g., gp_Pnt). Developer X can arbitrarily name this base class like MyPackage_BaseCollPnt in the examples above. This name is further used in the declarations of any (non-abstract) collection class to designate the C++ inheritance.
This base class has the following public API:
- abstract class Iterator as the base class for all Iterators descried above;
- Iterator& CreateIterator () const – creates and returns the Iterator on this collection;
- Standard_Integer Size () const – returns the number of items in this collection;
- void Assign (const NCollection_BaseCollection& theOther) – copies the contents of the Other to this collection object;
These members enable accessing any collection without knowing its exact type. In particular, it makes possible to implement methods receiving objects of the abstract collection type:
Note that there are fundamental differences between the shown type-independent iterator and the iterator belonging to a particular non-abstract collection:
- Type-independent iterator can only be obtained via the call CreateIterator(); the typed iterator – only via the explicit construction.
- Type-independent iterator is an abstract class, so it is impossible to copy it or to assign it to another collection object; the typed iterators can be copied and reassigned using the method Init().
- Type-independent iterator is actually destroyed when its collection object is destroyed; the typed iterator is destroyed as any other C++ object in the corresponding C++ scope.
The common point between them is that it is possible to create any number of both types of iterators on the same collection object.
Heterogeneous Assign
The semantics of the method Assign() has been changed in comparison to TCollection. In NCollection classes the method Assign() is virtual and it receives the object of the abstract BaseCollection class (see the previous section). Therefore this method can be used to assign any collection type to any other if only these collections are instantiated on the same ItemType.
For example, conversion of Map into Array1 is performed like this:
There are some aspects to mention:
- Unlike in TCollection, in NCollection the methods Assign and operator= do not coincide. The former is a virtual method defined in the BaseCollection class. The latter is always defined in instance classes as a non-virtual inline method and it corresponds exactly to the method Assign in TCollection classes. Therefore it is always profitable to use operator= instead of Assign wherever the types on both sides of assignment are known.
- If the method Assign copies to Array1 or Array2 structure, it first checks if the size of the array is equal to the number of items in the copied collection object. If the sizes differ, an exception is thrown, as in TCollection_Array1.gxx.
- Copying to Map, IndexedMap, DataMap and IndexedDataMap can bring about a loss of data: when two or more copied data items have the same key value, only one item is copied and the others are discarded. It can lead to an error in the code like the following:
Objects of classes parameterised with two types (DoubleMap, DataMap and IndexedDataMap) cannot be assigned. Their method Assign throws the exception Standard_TypeMismatch (because it is impossible to check if the passed BaseCollection parameter belongs to the same collection type).
Allocator
All constructors of NCollection classes receive the Allocator Object as the last parameter. This is an object of a type managed by Handle, inheriting NCollection_BaseAllocator, with the following (mandatory) methods redefined:
It is used internally every time when the collection allocates memory for its item(s) and releases this memory. The default value of this parameter (empty Handle) designates the use of NCollection_BaseAllocator X where the functions Standard::Allocate and Standard::Free are called. Therefore if the user of NCollection does not specify any allocator as a parameter to the constructor of his collection, the memory management will be identical to the one in TCollection and other Open CASCADE Technology classes.
Nevertheless, the it is possible to define a custom Allocator type to manage the memory in the most optimal or convenient way for his algorithms.
As one possible choice, the class NCollection_IncAllocator is included. Unlike BaseAllocator, it owns all memory it allocates from the system. Memory is allocated in big blocks (about 20kB) and the allocator keeps track of the amount of occupied memory. The method Allocate just increments the pointer to non-occupied memory and returns its previous value. Memory is only released in the destructor of IncAllocator, the method Free is empty. If used efficiently, this Allocator can greatly improve the performance of OCCT collections.
Strings
Strings are classes that handle dynamically sized sequences of characters based on ASCII/Unicode UTF-8 (normal 8-bit character type) and UTF-16/UCS-2 (16-bit character type). They provide editing operations with built-in memory management which make the relative objects easier to use than ordinary character arrays.
String classes provide the following services to manipulate character strings:
- Editing operations on string objects, using a built-in string manager
- Handling of dynamically-sized sequences of characters
- Conversion from/to ASCII and UTF-8 strings.
Strings may also be manipulated by handles and therefore shared.
Examples
TCollection_AsciiString
A variable-length sequence of ASCII characters (normal 8-bit character type). It provides editing operations with built-in memory management to make AsciiString objects easier to use than ordinary character arrays. AsciiString objects follow value semantics;, that is, they are the actual strings, not handles to strings, and are copied through assignment. You may use HAsciiString objects to get handles to strings.
TCollection_ExtendedString
A variable-length sequence of "extended" (UNICODE) characters (16-bit character type). It provides editing operations with built-in memory management to make ExtendedString objects easier to use than ordinary extended character arrays.
ExtendedString objects follow value semantics;, that is, they are the actual strings, not handles to strings, and are copied through assignment. You may use HExtendedString objects to get handles to strings.
TCollection_HAsciiString
A variable-length sequence of ASCII characters (normal 8-bit character type). It provides editing operations with built-in memory management to make HAsciiString objects easier to use than ordinary character arrays. HAsciiString objects are handles to strings.
- HAsciiString strings may be shared by several objects.
- You may use an AsciiString object to get the actual string. HAsciiString objects use an AsciiString string as a field.
TCollection_HExtendedString
A variable-length sequence of extended; (UNICODE) characters (16-bit character type). It provides editing operations with built-in memory management to make ExtendedString objects easier to use than ordinary extended character arrays. HExtendedString objects are handles to strings.
- HExtendedString strings may be shared by several objects.
- You may use an ExtendedString object to get the actual string. HExtendedString objects use an ExtendedString string as a field.
Conversion
Resource_Unicode provides functions to convert a non-ASCII C string given in ANSI, EUC, GB or SJIS format, to a Unicode string of extended characters, and vice versa.
Quantities
Quantities are various classes supporting date and time information and fundamental types representing most physical quantities such as length, area, volume, mass, density, weight, temperature, pressure etc.
Quantity classes provide the following services:
- Definition of primitive types representing most of mathematical and physical quantities;
- Unit conversion tools providing a uniform mechanism for dealing with quantities and associated physical units: check unit compatibility, perform conversions of values between different units, etc. (see package UnitsAPI)
- Resources to manage time information such as dates and time periods
- Resources to manage color definition
A mathematical quantity is characterized by the name and the value (real).
A physical quantity is characterized by the name, the value (real) and the unit. The unit may be either an international unit complying with the International Unit System (SI) or a user defined unit. The unit is managed by the physical quantity user.
The fact that both physical and mathematical quantities are manipulated as real values means that :
- They are defined as aliases of real values, so all functions provided by the Standard_Real class are available on each quantity.
- It is possible to mix several physical quantities in a mathematical or physical formula involving real values.
Quantity package includes all commonly used basic physical quantities.
Unit Conversion
The UnitsAPI global functions are used to convert a value from any unit into another unit. Conversion is executed among three unit systems:
- the SI System,
- the user’s Local System,
- the user’s Current System. The SI System is the standard international unit system. It is indicated by SI in the signatures of the UnitsAPI functions.
The OCCT (former MDTV) System corresponds to the SI international standard but the length unit and all its derivatives use the millimeter instead of the meter.
Both systems are proposed by Open CASCADE Technology; the SI System is the standard option. By selecting one of these two systems, you define your Local System through the SetLocalSystem function. The Local System is indicated by LS in the signatures of the UnitsAPI functions. The Local System units can be modified in the working environment. You define your Current System by modifying its units through the SetCurrentUnit function. The Current System is indicated by Current in the signatures of the UnitsAPI functions. A physical quantity is defined by a string (example: LENGTH).
Math Primitives and Algorithms
Overview
Math primitives and algorithms available in Open CASCADE Technology include:
- Vectors and matrices
- Geometric primitives
- Math algorithms
Vectors and Matrices
The Vectors and Matrices component provides a C++ implementation of the fundamental types Vector and Matrix, which are regularly used to define more complex data structures.
The Vector and Matrix classes provide commonly used mathematical algorithms which include:
- Basic calculations involving vectors and matrices;
- Computation of eigenvalues and eigenvectors of a square matrix;
- Solvers for a set of linear algebraic equations;
- Algorithms to find the roots of a set of non-linear equations;
- Algorithms to find the minimum function of one or more independent variables.
These classes also provide a data structure to represent any expression, relation, or function used in mathematics, including the assignment of variables.
Vectors and matrices have arbitrary ranges which must be defined at declaration time and cannot be changed after declaration.
Vector and Matrix objects use value semantics. In other words, they cannot be shared and are copied through assignment.
Vector and Matrix values may be initialized and obtained using indexes which must lie within the range definition of the vector or the matrix.
Some operations on Vector and Matrix objects may not be legal. In this case an exception is raised. Two standard exceptions are used:
- Standard_DimensionError exception is raised when two matrices or vectors involved in an operation are of incompatible dimensions.
- Standard_RangeError exception is raised if an access outside the range definition of a vector or of a matrix is attempted.
Primitive Geometric Types
Open CASCADE Technology primitive geometric types are a STEP-compliant implementation of basic geometric and algebraic entities. They provide:
- Descriptions of primitive geometric shapes, such as:
- Points;
- Vectors;
- Lines;
- Circles and conics;
- Planes and elementary surfaces;
- Positioning of these shapes in space or in a plane by means of an axis or a coordinate system;
- Definition and application of geometric transformations to these shapes:
- Translations;
- Rotations;
- Symmetries;
- Scaling transformations;
- Composed transformations;
- Tools (coordinates and matrices) for algebraic computation.
All these functions are provided by geometric processor package gp. Its classes for 2d and 3d objects are handled by value rather than by reference. When this sort of object is copied, it is copied entirely. Changes in one instance will not be reflected in another.
The gp package defines the basic geometric entities used for algebraic calculation and basic analytical geometry in 2d & 3d space. It also provides basic transformations such as identity, rotation, translation, mirroring, scale transformations, combinations of transformations, etc. Entities are handled by value.
Please, note that gp curves and surfaces are analytic: there is no parameterization and no orientation on gp entities, i.e. these entities do not provide functions which work with these properties.
If you need, you may use more evolved data structures provided by Geom (in 3D space) and Geom2d (in the plane). However, the definition of gp entities is identical to the one of equivalent Geom and Geom2d entities, and they are located in the plane or in space with the same kind of positioning systems. They implicitly contain the orientation, which they express on the Geom and Geom2d entities, and they induce the definition of their parameterization.
Therefore, it is easy to give an implicit parameterization to gp curves and surfaces, which is the parametrization of the equivalent Geom or Geom2d entity. This property is particularly useful when computing projections or intersections, or for operations involving complex algorithms where it is particularly important to manipulate the simplest data structures, i.e. those of gp. Thus, ElCLib and ElSLib packages provide functions to compute:
- the point of parameter u on a 2D or 3D gp curve,
- the point of parameter (u,v) on a gp elementary surface, and
- any derivative vector at this point.
Note: the gp entities cannot be shared when they are inside more complex data structures.
Collections of Primitive Geometric Types
Before creating a geometric object, you must decide whether you are in a 2d or in a 3d context and how you want to handle the object. If you do not need a single instance of a geometric primitive but a set of them then the package which deals with collections of this sort of object, TColgp, will provide the necessary functionality. In particular, this package provides standard and frequently used instantiations of generic classes with geometric objects, i.e. XY, XYZ, Pnt, Pnt2d, Vec, Vec2d, Lin, Lin2d, Circ, Circ2d.
Basic Geometric Libraries
There are various library packages available which offer a range of basic computations on curves and surfaces. If you are dealing with objects created from the gp package, the useful algorithms are in the elementary curves and surfaces libraries – the ElCLib and ElSLib packages.
- EICLib provides methods for analytic curves. This is a library of simple computations on curves from the gp package (Lines, Circles and Conics). It is possible to compute points with a given parameter or to compute the parameter for a point.
- EISLib provides methods for analytic surfaces. This is a library of simple computations on surfaces from the package gp (Planes, Cylinders, Spheres, Cones, Tori). It is possible to compute points with a given pair of parameters or to compute the parameter for a point. There is a library for calculating normals on curves and surfaces.
Additionally, Bnd package provides a set of classes and tools to operate with bounding boxes of geometric objects in 2d and 3d space.
Common Math Algorithms
The common math algorithms library provides a C++ implementation of the most frequently used mathematical algorithms. These include:
- Algorithms to solve a set of linear algebraic equations,
- Algorithms to find the minimum of a function of one or more independent variables,
- Algorithms to find roots of one, or of a set, of non-linear equations,
- An algorithm to find the eigenvalues and eigenvectors of a square matrix.
All mathematical algorithms are implemented using the same principles. They contain: A constructor performing all, or most of, the calculation, given the appropriate arguments. All relevant information is stored inside the resulting object, so that all subsequent calculations or interrogations will be solved in the most efficient way.
A function IsDone returning the boolean true if the calculation was successful. A set of functions, specific to each algorithm, enabling all the various results to be obtained. Calling these functions is legal only if the function IsDone answers true, otherwise the exception StdFail_NotDone is raised.
The example below demonstrates the use of the Gauss class, which implements the Gauss solution for a set of linear equations.The following definition is an extract from the header file of the class math_Gauss:
Now the main program uses the Gauss class to solve the equations a*x1=b1 and a*x2=b2:
The next example demonstrates the use of the BissecNewton class, which implements a combination of the Newton and Bissection algorithms to find the root of a function known to lie between two bounds. The definition is an extract from the header file of the class math_BissecNewton:
The abstract class math_FunctionWithDerivative describes the services which have to be implemented for the function f which is to be used by a BissecNewton algorithm. The following definition corresponds to the header file of the abstract class math_FunctionWithDerivative:
Now the test sample uses the BissecNewton class to find the root of the equation f(x)=x**2-4 in the interval [1.5, 2.5]: the function to solve is implemented in the class myFunction which inherits from the class math_FunctionWithDerivative, then the main program finds the required root.
Precision
On the OCCT platform, each object stored in the database should carry its own precision value. This is important when dealing with systems where objects are imported from other systems as well as with various associated precision values.
The Precision package addresses the daily problem of the geometric algorithm developer: what precision setting to use to compare two numbers. Real number equivalence is clearly a poor choice. The difference between the numbers should be compared to a given precision setting.
Do not write if (X1 == X2), instead write if (Abs(X1-X2) < Precision).
Also, to order real numbers, keep in mind that if (X1 < X2 - Precision) is incorrect. if (X2 - X1 > Precision) is far better when X1 and X2 are high numbers.
This package proposes a set of methods providing precision settings for the most commonly encountered situations.
In Open CASCADE Technology, precision is usually not implicit; low-level geometric algorithms accept precision settings as arguments. Usually these should not refer directly to this package.
High-level modeling algorithms have to provide a precision setting to the low level geometric algorithms they call. One way is to use the settings provided by this package. The high-level modeling algorithms can also have their own strategy for managing precision. As an example the Topology Data Structure stores precision values which are later used by algorithms. When a new topology is created, it takes the stored value. Different precision settings offered by this package cover the most common needs of geometric algorithms such as Intersection and Approximation. The choice of a precision value depends both on the algorithm and on the geometric space. The geometric space may be either:
- a real space, 3d or 2d where the lengths are measured in meters, micron, inches, etc.
- a parametric space, 1d on a curve or 2d on a surface where numbers have no dimension. The choice of precision value for parametric space depends not only on the accuracy of the machine, but also on the dimensions of the curve or the surface. This is because it is desirable to link parametric precision and real precision. If you are on a curve defined by the equation P(t), you would want to have equivalence between the following:
The Precision package
The Precision package offers a number of package methods and default precisions for use in dealing with angles, distances, intersections, approximations, and parametric space. It provides values to use in comparisons to test for real number equalities.
- Angular precision compares angles.
- Confusion precision compares distances.
- Intersection precision is used by intersection algorithms.
- Approximation precision is used by approximation algorithms.
- Parametric precision gets a parametric space precision from a 3D precision.
- Infinite returns a high number that can be considered to be infinite. Use -Infinite for a high negative number.
Standard Precision values
This package provides a set of real space precision values for algorithms. The real space precisions are designed for precision to 0.1 nanometers. The only unit available is the millimeter. The parametric precisions are derived from the real precisions by the Parametric function. This applies a scaling factor which is the length of a tangent to the curve or the surface. You, the user, provide this length. There is a default value for a curve with [0,1] parameter space and a length less than 100 meters. The geometric packages provide Parametric precisions for the different types of curves. The Precision package provides methods to test whether a real number can be considered to be infinite.
Precision::Angular
This method is used to compare two angles. Its current value is Epsilon(2 * PI) i.e. the smallest number x such that 2*PI + x is different of 2*PI.
It can be used to check confusion of two angles as follows: Abs(Angle1 - Angle2) < Precision::Angular()
It is also possible to check parallelism of two vectors (Vec from gp) as follows V1.IsParallel(V2,Precision::Angular())
Note that Precision::Angular() can be used on both dot and cross products because for small angles the Sine and the Angle are equivalent. So to test if two directions of type gp_Dir are perpendicular, it is legal to use the following code: Abs(D1 * D2) < Precision::Angular()
Precision::Confusion
This method is used to test 3D distances. The current value is 1.e-7, in other words, 1/10 micron if the unit used is the millimeter.
It can be used to check confusion of two points (Pnt from gp) as follows: P1.IsEqual(P2,Precision::Confusion())
It is also possible to find a vector of null length (Vec from gp) : V.Magnitude() < Precision::Confusion()
Precision::Intersection
This is reasonable precision to pass to an Intersection process as a limit of refinement of Intersection Points. Intersection is high enough for the process to converge quickly. Intersection is lower than Confusion so that you still get a point on the intersected geometries. The current value is Confusion() / 100.
Precision::Approximation
This is a reasonable precision to pass to an approximation process as a limit of refinement of fitting. The approximation is greater than the other precisions because it is designed to be used when the time is at a premium. It has been provided as a reasonable compromise by the designers of the Approximation algorithm. The current value is Confusion() * 10. Note that Approximation is greater than Confusion, so care must be taken when using Confusion in an approximation process.
Generated on Wed Aug 30 2017 17:04:20 for Open CASCADE Technology by
1.8.13
