To create a flyout in a row on a ribbon panel

1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.
2. In the Customize User Interface Editor, Customize tab, in the Customizations In <file name> pane, click the plus sign (+) next to Ribbon Panels to expand it.
3. Click the plus sign (+) next to the ribbon panel where you want to add a flyout.

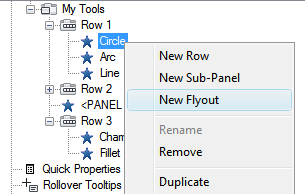

4. Right-click the row to which you want to add a flyout. Click New Flyout.

   A new flyout (named New Flyout) is created in the last position of the row.

5. Right-click New Flyout. Click Rename. Enter a new name.

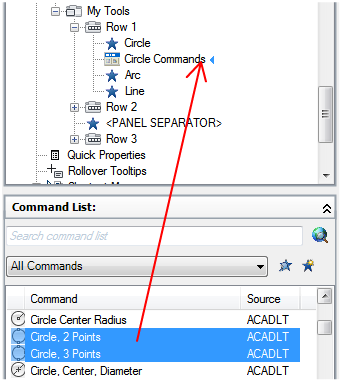

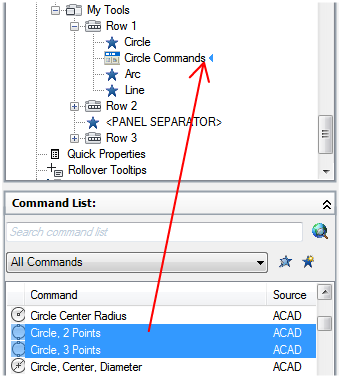

6. In the Command List pane, drag the commands that you want to add to the new flyout in the Customizations In <file name> pane.





7. Click OK.
