To remove a command from a ribbon panel (Procedure)

AutoCAD


Create and Edit Ribbon Panels
Concept Procedure Quick Reference




To remove a command from a ribbon panel

  1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.
  2. In the Customize User Interface Editor, Customize tab, in the Customizations In <file name> pane, click the plus sign (+) next to Ribbon Panels to expand it.
  3. Click the plus sign (+) next to the ribbon panel where you want to remove a command.
  4. Click the plus sign (+) next to the row where you want to remove a command. If you need to, continue expanding sub-panels, rows, and flyouts to get to the command.
  5. Select the command that you want to remove.

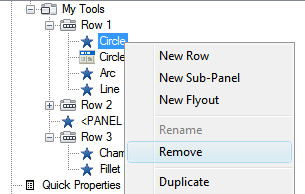

  6. Right-click the selected command. Click Remove.

  7. Click OK.
