To duplicate a user interface element (Procedure)

AutoCAD


Basics of Customization Files
Concept Procedure Quick Reference




To duplicate a user interface element

  1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.
  2. In the Customize User Interface Editor, Customize tab, Customizations In <file name> pane, expand the main node for the user interface element that you want to duplicate.

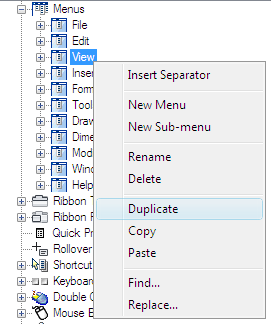

  3. Right-click over the user interface element, and click Duplicate.

    A copy of the selected user interface element is created in-place directly above the selection in the Customizations In <file name> pane.

    NoteThe key combination CTRL+D can be used to duplicate a user interface element in-place.
  4. Click OK.
