To assign a standard image to a command

1. Click Tools tab Customization panel User Interface . At the command prompt, enter cui.
2. In the Customize User Interface Editor, Customize tab, in the Command List pane, click any command to display the Button Image pane (in the upper-right corner) and the Properties pane (in the lower-right corner).

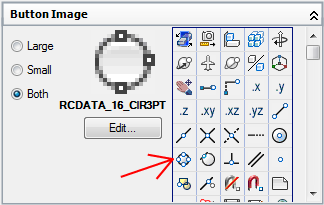

3. In the Button Image pane, select one of the three image assignment options; Large, Small, or Both.



4. Select an image from the image list and the image name is assigned to the Small, Large, or both the Small and Large image properties of the selected command.



   NoteAs you select an image from the image list, the image’s name is displayed between the preview of the image and the Edit button in the Button Image pane. If the image is a custom image stored in a bitmap file, the file name is displayed.
