CodeXL User GuideView data in CPU API Tables

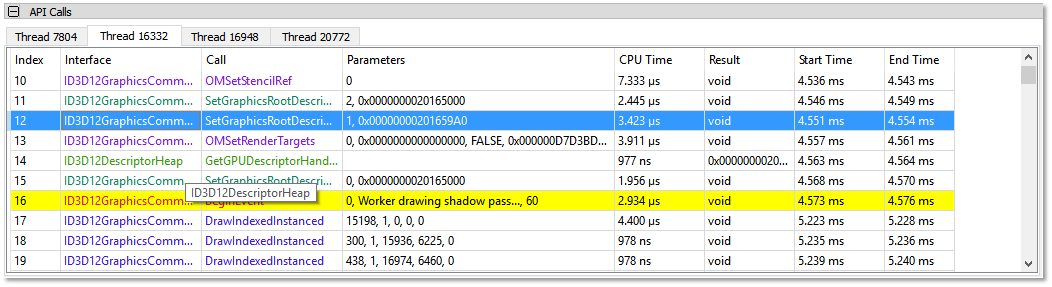

The CPU and GPU API table monitor each of the frames API calls. The table below specified each of the API table columns.
|
Name |
Description |
|
Index |
The API call index for this thread. |
|
Interface |
The API interface. |
|
Call |
The API call name |
|
Parameters |
A string describing the parameters for this call. |
|
CPU Time |
The duration of this API call on the CPU |
|
Result |
The API return value |
|
The time (from the frame start time in ms) the API started |
|
|
End Time |
The time (from the frame start time in ms) the API ended |
* Notice: BeginEvent, EndEvent, and SetMarker API calls are marked in yellow for easy navigation.
