To remove a button from a toolbar in the Customizations In pane (Procedure)

AutoCAD


Create and Edit Toolbars
Concept Procedure Quick Reference




To remove a button from a toolbar in the Customizations In pane

  1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.
  2. In the Customize User Interface Editor, Customize tab, in the Customizations In <file name> pane, click the plus sign (+) next to the Toolbar node to expand it.
  3. Click the plus sign (+) next to a toolbar to expand it.

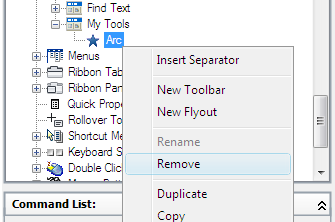

  4. Right-click the name of the button you want to remove. Click Remove.

  5. Click OK.
