To control which properties are displayed on a rollover tooltip

  1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.
  2. In the Customize User Interface Editor, Customize tab, in the Customizations In <file name> pane, select Rollover Tooltips.

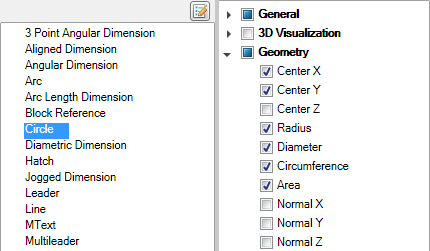

  3. In the Objects pane, select an object from the Object Type list.

  4. In the Properties pane, select the properties you want displayed for an object type on a rollover tooltip.

    If a property is checked, the property is displayed on a rollover tooltip when the cursor hovers over an object of the selected type in the drawing window. Clear the check mark next to a property to remove the property for the selected object type from a rollover tooltip.

  5. Click Apply.
