To control which object types are used with the Quick Properties panel

  1. Click Tools tab Customization panel User Interface . At the command prompt, enter cui.
  2. In the Customize User Interface Editor, Customize tab, in the Customizations In <file name> pane, select Quick Properties.

  3. In the Objects pane, click Edit Object Type List.

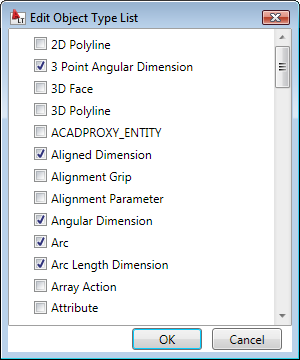

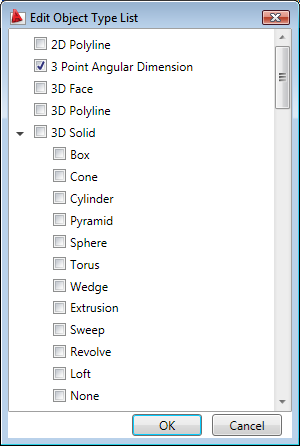

  4. In the Edit Object Type List dialog box, select the object type you want to display properties for on the Quick Properties panel.

    If an object type is checked, the properties for the object type are displayed on the Quick Properties panel when an object of the same type is selected in the drawing window. Clear the check mark next to an object type to remove support for the object type from the Quick Properties panel.

  5. Click OK.
  6. In the Customize User Interface Editor, click Apply.
