Creating, editing, viewing and deleting tasks
This list displays the tasks of the current task group, or all of your tasks if All tasks is selected:
In order to test, you must first create a task list.
To create a new task

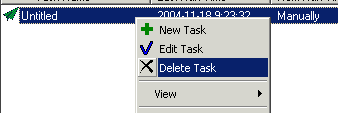

To create a Task List you must define a Task Name, Radius Packages and other settings. Right click in the Task list,or click the "New Task" button, or select "File | New Task" menu item:

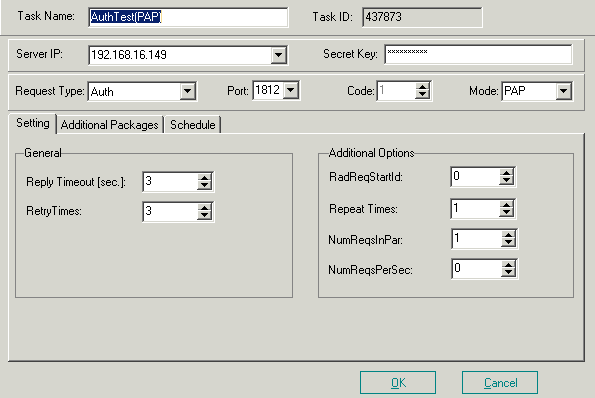

Then the "Task Properties" window will be displayed:
- Task Name - Type the Task Name that you want for the task.
- Server IP - Type or select the RADIUS server internet protocol address that you want for the task.
- Secret key - Type the RADIUS secret key that you want for the task.
- Request Type - Select the Request Type that you want for the task.
- Port - Assign RADIUS server port.
- Code - Display RADIUS Codes (decimal), if "Request Type" is "User Defined", you can assign RADIUS Codes (decimal)
- Mode - Select the Auth Type that you want for the task. If you select "PAP", you must explicitly enter the "User-Password" attribute in the request attribute list, if you select "CHAP", you must explicitly enter the "CHAP-Password" attribute in the request attribute list,if you select "EAP-MD5", you must explicitly enter the "EAP-MD5-Password" attribute in the request attribute list.
1. Setting window
- Reply Timeout [sec.] - Set the reply timeout.
- Retry Times - Set the retry parameter when reply timeout.
- RadReqStartId - Set the Radius request start id.
- Repeat Times - Set each packet repeat send times.
- NumReqInPar - Set send packet requests number in parallel, without waiting for a response for each one. By default (Default value is 1), Radius Test sends the first request listed in a task, waits for the response, and once the response is received, sends the second request. This option allows you to send many requests at a time. Once requests number in parallel are sent, Radius Test waits for all of the responses to arrive (or for the requests to time out), before sending any more packets.
- NumReqsPerSec - Set send requests number per second, evenly spaced over time. By default (Default value is 0), the requests are sent as fast as possible. This option allows you to slow down the rate at which Radius Test sends requests.
2. Additional Packet window
Packets List - the packets will be displayed in the list of "Packets List".
Attributes List - the attributes will be displayed in the list of "Attributes List" of each selected packet.
To add a Packet

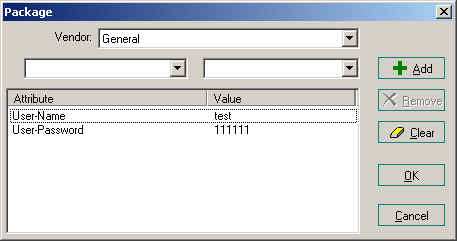

1.Click on the "Add" button and the "Packet" window will be displayed:
you can add as many Radius attributes as you like to your request. The list of available attributes and the relevant values in the two dropdown boxes depend on the dictionary file.

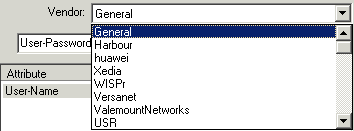

1. Find the name of the vendor you wish to view in the list of "Vendor Name".
2.Select the attribute name from the attribute name drop down list, or enter the attribute name.
3.Select the attribute value from the attribute value drop down list, or enter the attribute value, and click "Add" button to add the attribute to attribute list.
4.To remove a attribute that currently resides in the attribute list, select the attribute record and click "Remove" button.
5.To clear the attribute list, click "Clear" button.
After that you can press the "OK" button to save the packet, or press the "Cancel" to cancel the packet.
To Modify a Packet
If you wish to modify a packet that currently resides in the Packets list":
1. Select the packet record from the Packets list.
2. Click the "Modify" button.
To delete a Packet
If you wish to delete a packet that currently resides in the Packets list":
1. Select the packet record from the Packets list.
2. Click the "Remove" button.
To Import Packets List
1. Click the "Import" button.
2. Select your packet file.

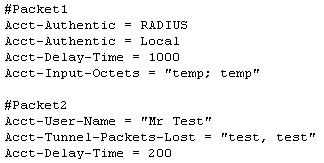

The file format, for example:
To Export Packets List
1. Click the "Export" button.
2. Select path and enter your file name.
To clear Packets List
If you wish to clear all packet that currently resides in the Packets list":
1. Click the "Clear" button.

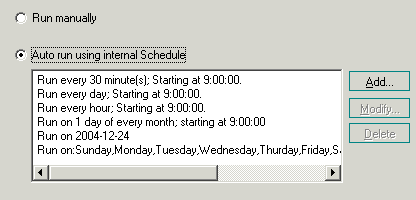

2. Schedule window
Run manually - Select "Run manually" if you do not want Radius Test send packet automatically.
Auto run using internal Schedule - If you want to make test according to a schedule, Radius Test provides practically all possible variants.
To Edit a task
Right click on the task you want to delete, select "Edit Task" menu item, or select "Edit Task" button, or select "File | Edit Task" menu item.
To View a task
Right click on the task you want to view, select "View Task" menu item, or select "View Task" button, or select "File | View Task" menu item.
To delete a task
Right click on the task you want to delete, select "Delete Task" menu item, or select "Delete Task" button, or select "File | Delete Task" menu item.
