radeapclient - A command line tool to send packets to a RADIUS server and show reply.
Command line syntax:
radeapclient [-c count] [-f file] [-i id] [-r num_retries] [-s] [-t timeout] [-qx] server {acct|auth|status|disconnect} secret
-c count
Send each packet count times.
-f file
File to read the attribute/value pairs from. If this is not specified, they are read from stdin.-i id
Use id as the RADIUS request Id.
-r num_retries
Try to send each packet num_retries times, before giving up on it. The default is 3.
-s Print out debug information.
-t timeout
Wait timeout seconds before deciding that the NAS has not responded to a request, and re-sending the
packet. The default timeout is 3.-q Go to quiet mode, and do not print out anything.
-x Print out extra debugging information.
server[:port]
The hostname or IP address of the remote server. Optionally a UDP port can be specified. If no UDP
port is specified, 1813 for accounting packets and 1812 for all other requests.
acct | auth | status | disconnect
Use auth to send an authentication packet (Access-Request), acct to send an accounting packet
(Accounting-Request), status to send an status packet (Status-Server), or disconnect to send a
disconnection request. Instead of these values, you can also use a decimal code here.
code 1 is Access-Request.
code 4 is Accounting-Request.
code 12 is Status-Server
code 40 is Disconnection-Request.
secret The shared secret for this client. It needs to be defined on the radius server side too, for the IP address you are sending the radius packets from.
Example:
1.A sample session that queries the remote server for a
EAP Access-Request
"C:\Program Files\RadUtils\RadiusTest\radeapclient.exe" -c 1 -f "test.txt" -i 0 -r 3 -t 3 -sx 192.168.16.100:1812 auth testing123
where attribute/value pairs from test.txt is:
User-Name = "testeap"
EAP-MD5-Password = "111111"
EAP-Code = Response
EAP-Id = 210
EAP-Type-Identity = "testeap"
Message-Authenticator = 0x00
2.A sample session that queries the remote server for a
EAP Access-Request

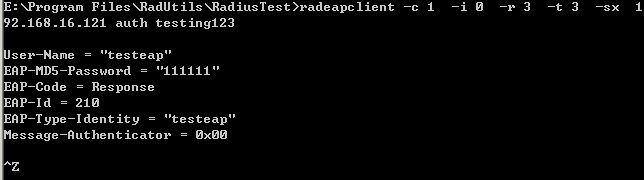

"C:\Program Files\RadUtils\RadiusTest\radeapclient.exe" -c 1
-i 0 -r 3 -t 3 -sx 192.168.16.100:1812 auth testing123
where attribute/value pairs read from stdin.
After you have input attribute/value pairs, you must input CTRL+Z (standard input EOF) to end the attribute/value pairs input, and press ENTER to run radeapclient.
