To modify a shortcut key (Procedure)

AutoCAD


Add Shortcut Keys and Temporary Override Keys
Concept Procedure Quick Reference




To modify a shortcut key

  1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.
  2. In the Customize User Interface Editor, Customize tab, click the plus sign (+) next to Keyboard Shortcuts to expand it.
  3. Click the plus sign (+) next to Shortcut Keys to expand it.
  4. Click a shortcut key.

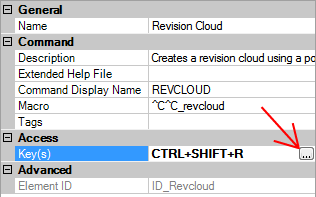

    In the Properties pane, the properties for the shortcut key you selected are displayed.

  5. In the Key(s) box, click the [] button to open the Shortcut Keys dialog box.

  6. Hold down the modifier key CTRL with a combination of SHIFT and ALT if desired and press a letter, number, function, or virtual key. Valid modifier and key combinations include the following:
    • Function (Fn) keys containing no modifiers
    • Number Pad (NUMPADn) keys containing no modifiers
    • CTRL+letter, CTRL+number, CTRL+function, CTRL+virtual key
    • CTRL+ALT+letter, CTRL+ALT+number, CTRL+ALT+function, CTRL+ALT+virtual key
    • CTRL+SHIFT+letter, CTRL+SHIFT+number, CTRL+SHIFT+function, CTRL+SHIFT+virtual key
    • CTRL+SHIFT+ALT+letter, CTRL+SHIFT+ALT+number, CTRL+SHIFT+ALT+function, CTRL+SHIFT+ALT+virtual key
      NoteThe virtual keys that are supported are Escape, Insert, Delete, Home, End, Page Up, Page Down, Left Arrow, Right Arrow, Up Arrow, and Down Arrow. The virtual key Escape can only be used by itself or with the modifier combination CTRL+SHIFT+ALT.

    Below the Press New Shortcut Key box, Currently Assigned To displays any current assignments for the key.

  7. If you do not want to replace the current assignment, use a different shortcut key. Otherwise, click OK to assign the shortcut key and close the Shortcut Keys dialog.
  8. In the Customize User Interface Editor, click OK.
