To synchronize rollover tooltips with Quick Properties (Procedure)

AutoCAD


Customize Rollover Tooltips
Concept Procedure Quick Reference




To synchronize rollover tooltips with Quick Properties

  1. Click Tools tab Customization panel User Interface. At the command prompt, enter cui.

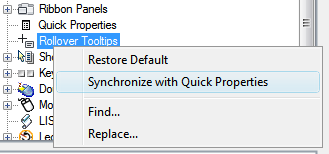

  2. In the Customize User Interface Editor, Customize tab, in the Customizations In <file name> pane, right-click Rollover Tooltips.
  3. Click Synchronize with Quick Properties.

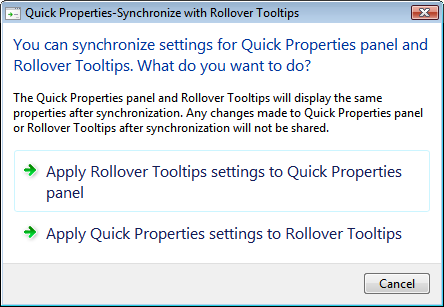

  4. Click Apply Quick Properties Settings to Rollover Tooltips.

  5. Click Apply.
